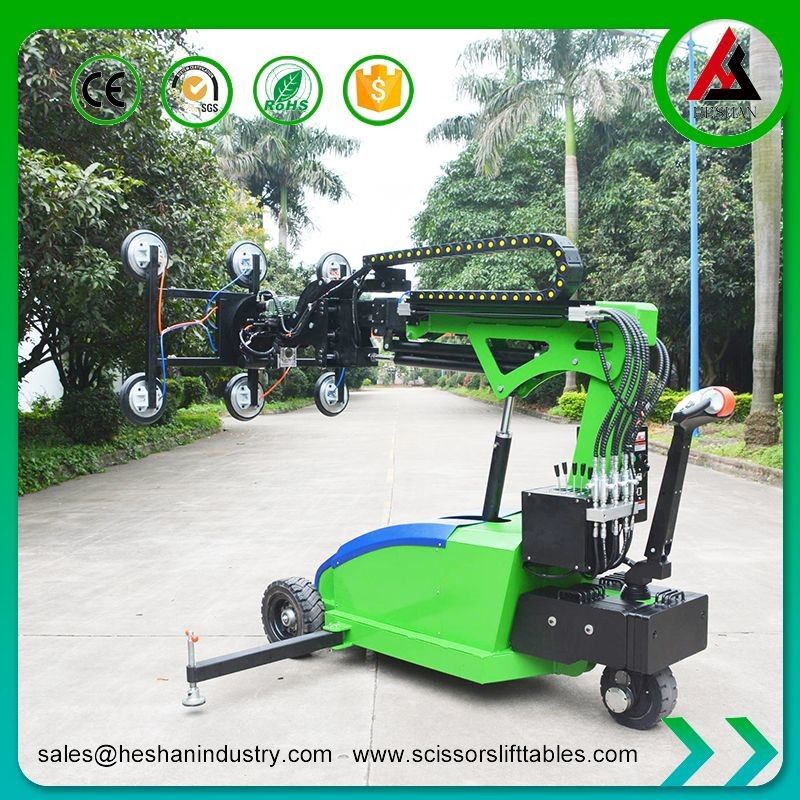

Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved
  • Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved
  • Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved
Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved

Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number VGL
Product Details
Application:
Building Glass, Glass Puller/Lifter/Gripper/Dent Puller, Etc, Industry, Move Glass,metal Plates,stone Slabs,Plastic Sheet
Function:
Transfer, Lifter, Loading Glass, Multi Functional, Glasss Lifter Machine
Load Capacity:
300kg,400kg,500kg,600kg,800kg
Usage:
Glass Lifter, Glass Lifing Moving, Glass Move, Etc, Glass Clamp
After-sales Service Provided:
Free Spare Parts, Online Support
Voltage:
110v 220v 230v 240v Optional,According To Local Voltage
Warranty:
2 Years
Performance:
Rotate And Flip 90 Degree, Handing Process, Rotation 0-90 Degree And Lifting 600-1200mm
Oem/odm:
Available, Yes
Color:
Customized
Control Mode:
Wireless Remote Control（optional）
Name:
Vacuum Glass Lifter
Safety System:
Overload Protection
Highlight:

Vertical Vacuum Glass Lifter

,

Battery Powered Vacuum Glass Lifter

,

CE Glass Suction Cup Lifter

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 2000~USD 10000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
10000 set per year
Product Description
Vertical Steel Board Lift Used Battery Vacuum Glass Suction Cup Lifter

Today, I wanna talk about a product that's gonna take your glass handling skills to the next level. Say hello to the Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter.

This beast of a lifter is perfect for anyone who needs to handle glass on a regular basis. With its battery-powered design, you don't have to worry about cords getting in your way. And with its CE approval, you can be sure that it's safe and reliable.

The suction cups on this lifter are no joke. They're designed to grip onto glass with ease, making it easy to lift and move even large pieces of glass. And with its vertical design, you can easily lift glass panels straight up and down, without needing to tilt them.

This lifter is perfect for a wide range of applications, from construction sites to glass installation projects. Whether you're working on a skyscraper or just installing a window in your home, this lifter is gonna make your life so much easier.

Specification:
Model Type VGL300-3.5 VGL400-3.5 VGL500-3.7 VGL600-3.7 VGL800-4.5
Load Capacity 300kg (retract)
150kg (extend)		 400kg (retract)
200kg (extend)		 500kg (retract)
250kg (extend)		 600kg (retract)
300kg (extend)		 800kg (retract)
400kg (extend)
Lifting Height 3500mm 3500mm 3700mm 3700mm 4500mm
QTY of Suction Cap 4pcs 4pcs 6pcs 6pcs 8pcs
Rubber Suction Cap Ø300mm Ø300mm Ø300mm Ø300mm Ø300mm
Maintenance-free Battery 2x12V/80AH 2x12V/100AH 2x12V/120AH 2x12V/120AH 2x12V/120AH
Battery Charger Smart Charger Smart Charger Smart Charger Smart Charger Smart Charger
Drive motor 24V/1200W 24V/1200W 24V/1200W 24V/1200W 24V/1200W
Lifting Motor 24V/2000W/6L 24V/2000W/6L 24V/2000W/6L 24V/2000W/6L 24V/2000W/12L
Chassis L*W 2660*810mm 2660*810mm 2800*810mm 2800*810mm 2800*810mm
Driving Wheel Ø250x80mm Ø250x80mm Ø300x100mm Ø300x100mm Ø300x125mm
Packing Size(mm) 2560*1030*1700 2560*1030*1700 2580*1050*1700 2580*1050*1700 3000*1250*2300
N.W/G.W 1100/1150kg 1280/1330kg 1300/ 1350kg 1400/ 1450kg 1600/1650kg
Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved 0Vertical Vacuum Glass Lifter Battery Powered Glass Suction Cup Lifter CE Approved 1
Vacuum Glass Lifter is designed to be easy to operate, with intuitive controls that minimize the learning curve for operators. The equipment is also designed to be low maintenance, with easily accessible components that reduce downtime and repair costs.

Vacuum Glass Lifter is environmentally friendly, using low-energy consumption and long-lasting batteries to minimize its carbon footprint. This makes it an eco-friendly solution for businesses looking to reduce their impact on the environment.

The equipment has a sleek and modern design, making it a visually appealing addition to any workplace. Its compact size and maneuverability make it easy to move around and use in tight spaces, maximizing floor space utilization.
