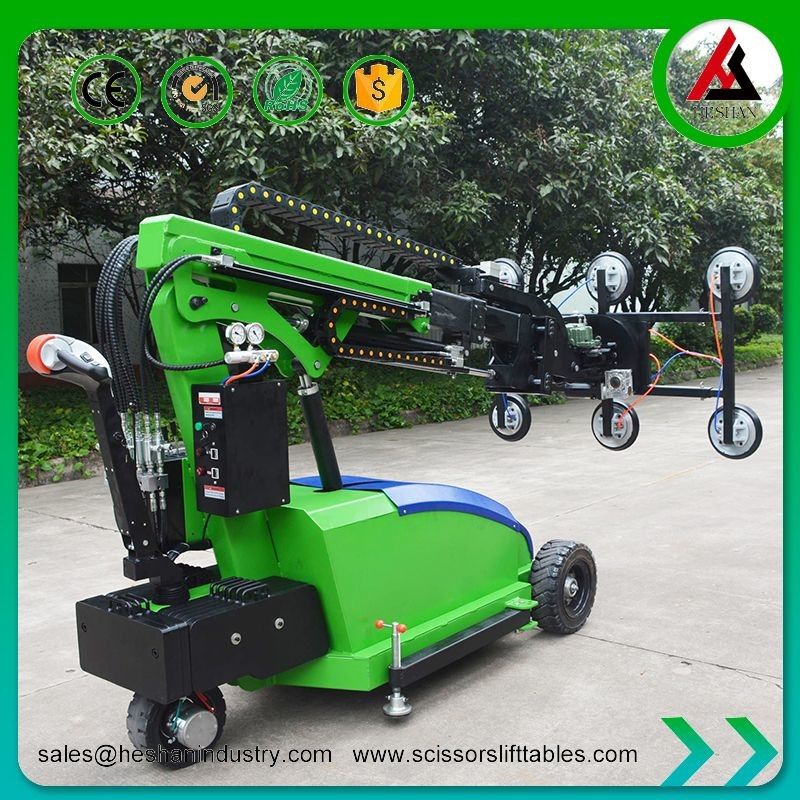

Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg
  • Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg
  • Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg
Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg

Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number VGL
Product Details
Application:
Building Glass, Glass Puller/Lifter/Gripper/Dent Puller, Etc, Industry, Move Glass,metal Plates,stone Slabs,Plastic Sheet
Function:
Transfer, Lifter, Loading Glass, Multi Functional, Glasss Lifter Machine
Load Capacity:
300kg,400kg,500kg,600kg,800kg
Usage:
Glass Lifter, Glass Lifing Moving, Glass Move, Etc, Glass Clamp
After-sales Service Provided:
Free Spare Parts, Online Support
Voltage:
110v 220v 230v 240v Optional,According To Local Voltage
Warranty:
2 Years
Performance:
Rotate And Flip 90 Degree, Handing Process, Rotation 0-90 Degree And Lifting 600-1200mm
Oem/odm:
Available, Yes
Color:
Customized
Plate Dimension:
4000*3000mm
Lift Height:
3.5m
Lifting Speed:
8m/min
Highlight:

Movable Glass Lifting Solutions

,

Indoor Glass Lifting Solutions

,

300kg Heavy Glass Lifting Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 2000~USD 10000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
10000 set per year
Product Description
Indoor Outdoor Movable Glass Lifter Heavy Glass Lifting Equipment

Movable Glass Lifting Solutions are versatile equipment that can be used in a wide range of applications both indoors and outdoors. They are commonly used in the following areas:

Construction sites - for lifting and moving glass panels, windows, and curtain walls during construction or renovation projects.

Manufacturing plants - for handling glass sheets during the production process.

Warehouses - for moving and storing glass products.

Glass installation companies - for installing glass panels in buildings, homes, and other structures.

Maintenance and repair services - for repairing and replacing glass windows and panels.

Event companies - for installing glass walls or panels for events or exhibitions.

Landscaping and pool companies - for installing glass walls or panels in outdoor areas such as swimming pools, patios, and gardens.

Overall, Movable Glass Lifting Solutions are essential equipment for anyone who needs to handle glass products in a safe, efficient, and effective manner.


Specification:
Model TypeVGL300-3.5VGL400-3.5VGL500-3.7VGL600-3.7VGL800-4.5
Load Capacity300kg (retract)
150kg (extend)		400kg (retract)
200kg (extend)		500kg (retract)
250kg (extend)		600kg (retract)
300kg (extend)		800kg (retract)
400kg (extend)
Lifting Height3500mm3500mm3700mm3700mm4500mm
QTY of Suction Cap4pcs4pcs6pcs6pcs8pcs
Rubber Suction CapØ300mmØ300mmØ300mmØ300mmØ300mm
Maintenance-free Battery2x12V/80AH2x12V/100AH2x12V/120AH2x12V/120AH2x12V/120AH
Battery ChargerSmart ChargerSmart ChargerSmart ChargerSmart ChargerSmart Charger
Drive motor24V/1200W24V/1200W24V/1200W24V/1200W24V/1200W
Lifting Motor24V/2000W/6L24V/2000W/6L24V/2000W/6L24V/2000W/6L24V/2000W/12L
Chassis L*W2660*810mm2660*810mm2800*810mm2800*810mm2800*810mm
Driving WheelØ250x80mmØ250x80mmØ300x100mmØ300x100mmØ300x125mm
Packing Size(mm)2560*1030*17002560*1030*17002580*1050*17002580*1050*17003000*1250*2300
N.W/G.W1100/1150kg1280/1330kg1300/ 1350kg1400/ 1450kg1600/1650kg

Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg 0Movable Glass Lifting Solutions Indoor Outdoor Heavy Glass Lifting Equipment 300kg 1

With its ergonomic design, intuitive controls, and robust construction, Vacuum Glass Lifter is engineered to meet the most demanding requirements of the glass industry. It is easy to operate, maintain, and customize, making it an essential asset for any glass-handling operation.

Vacuum Glass Lifter is more than just a lifting equipment; it is a powerful and indispensable tool that provides businesses with the ability to handle glass panels with ease and efficiency. If you're looking for a reliable and innovative solution for your glass-handling needs, Vacuum Glass Lifter is the way to go.
