Full Electric Pneumatic Glass Sucker Lifter Vacuum 300kg Load Capacity
  • Full Electric Pneumatic Glass Sucker Lifter Vacuum 300kg Load Capacity
  • Full Electric Pneumatic Glass Sucker Lifter Vacuum 300kg Load Capacity
Full Electric Pneumatic Glass Sucker Lifter Vacuum 300kg Load Capacity

Full Electric Pneumatic Glass Sucker Lifter Vacuum 300kg Load Capacity

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number VGL
Product Details
Application:
Building Glass, Glass Puller/Lifter/Gripper/Dent Puller, Etc, Industry, Move Glass,metal Plates,stone Slabs,Plastic Sheet
Function:
Transfer, Lifter, Loading Glass, Multi Functional, Glasss Lifter Machine
Load Capacity:
300kg,400kg,500kg,600kg,800kg
Usage:
Glass Lifter, Glass Lifing Moving, Glass Move, Etc, Glass Clamp
After-sales Service Provided:
Free Spare Parts, Online Support
Voltage:
110v 220v 230v 240v Optional,According To Local Voltage
Warranty:
2 Years
Performance:
Rotate And Flip 90 Degree, Handing Process, Rotation 0-90 Degree And Lifting 600-1200mm
Oem/odm:
Available, Yes
Color:
Golden, Picture, Customizable, Customer-made, Yellow
Control Mode:
Electric Automatic /Remote Control
Cup Quantity:
4/6
Product Name:
Vacuum Glass Lifter
Protection Level:
IP54
Highlight:

Full Electric Glass Sucker Lifter

,

Vacuum Glass Sucker Lifter

,

300kg Pneumatic Glass Lifter

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 2000~USD 10000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
10000 set per year
Product Description

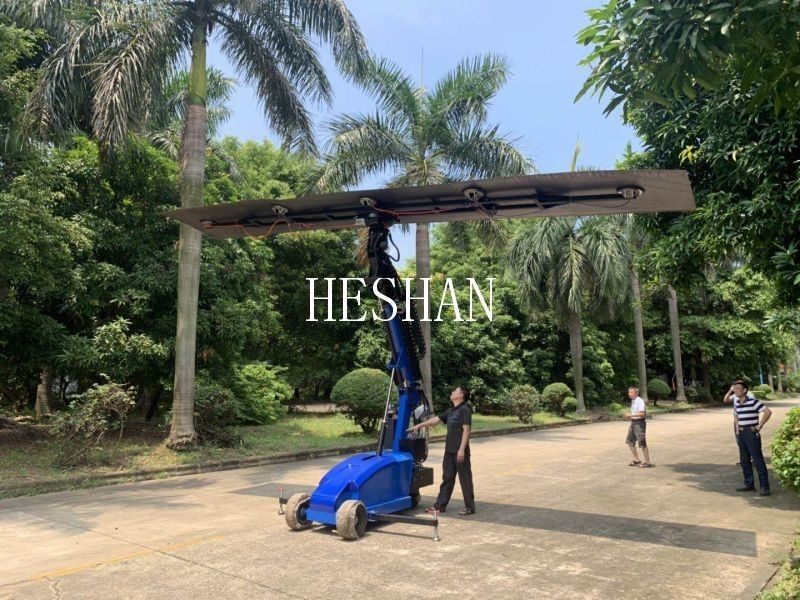

Full Electric 300kg Vacuum Glass Wood Sucker Pneumatic Glass Lifter

Electric Crane Vacuum Glass Lifter.This product is highly versatile and can be used in a variety of industries and applications, including:

Construction - for lifting and installing glass panels, windows, and curtain walls on building sites.

Manufacturing - for handling and moving large glass sheets during production processes.

Warehousing - for lifting and moving glass products in storage facilities.

Glass installation and repair - for installing and repairing glass windows and panels in homes, offices, and other structures.

Landscaping and pool companies - for installing glass walls or panels in outdoor areas such as swimming pools, patios, and gardens.

Event companies - for installing glass walls or panels for events, exhibitions, and trade shows.

Transportation - for loading and unloading glass products onto trucks or other transportation vehicles.

Specification:
Model Type VGL300-3.5 VGL400-3.5 VGL500-3.7 VGL600-3.7 VGL800-4.5
Load Capacity 300kg (retract)
150kg (extend)		 400kg (retract)
200kg (extend)		 500kg (retract)
250kg (extend)		 600kg (retract)
300kg (extend)		 800kg (retract)
400kg (extend)
Lifting Height 3500mm 3500mm 3700mm 3700mm 4500mm
QTY of Suction Cap 4pcs 4pcs 6pcs 6pcs 8pcs
Rubber Suction Cap Ø300mm Ø300mm Ø300mm Ø300mm Ø300mm
Maintenance-free Battery 2x12V/80AH 2x12V/100AH 2x12V/120AH 2x12V/120AH 2x12V/120AH
Battery Charger Smart Charger Smart Charger Smart Charger Smart Charger Smart Charger
Drive motor 24V/1200W 24V/1200W 24V/1200W 24V/1200W 24V/1200W
Lifting Motor 24V/2000W/6L 24V/2000W/6L 24V/2000W/6L 24V/2000W/6L 24V/2000W/12L
Chassis L*W 2660*810mm 2660*810mm 2800*810mm 2800*810mm 2800*810mm
Driving Wheel Ø250x80mm Ø250x80mm Ø300x100mm Ø300x100mm Ø300x125mm
Packing Size(mm) 2560*1030*1700 2560*1030*1700 2580*1050*1700 2580*1050*1700 3000*1250*2300
N.W/G.W 1100/1150kg 1280/1330kg 1300/ 1350kg 1400/ 1450kg 1600/1650kg
Full Electric Pneumatic Glass Sucker Lifter Vacuum 300kg Load Capacity 0

Vacuum Glass Lifter is the ultimate solution for glass handling in a variety of industries, including glass manufacturing, processing, and installation. Using advanced vacuum suction technology, it provides a secure and reliable grip on glass panels of various sizes and shapes, making it ideal for a wide range of glass-handling applications.

Whether you're transporting raw materials in a glass manufacturing plant, processing glass panels in a workshop, or installing glass products in a high-rise building, Vacuum Glass Lifter is the perfect tool to help you get the job done with speed, precision, and safety.
