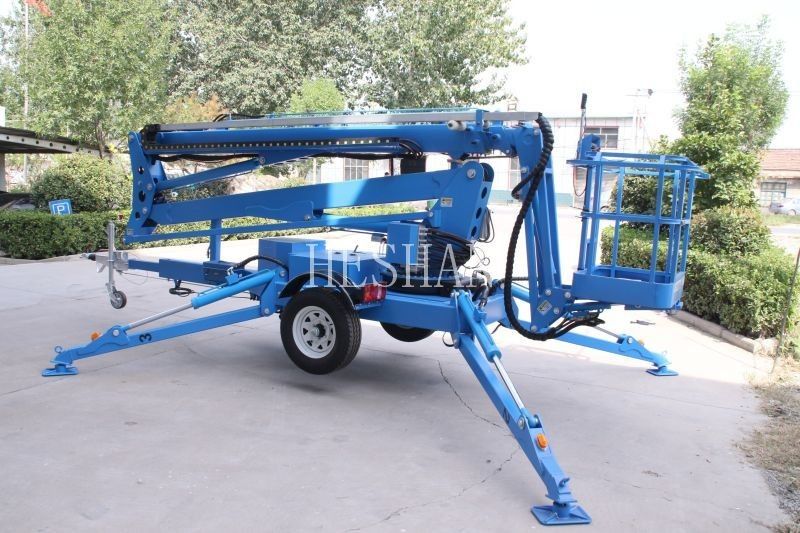

18m Articulated Boom Lift
  • 18m Articulated Boom Lift
  • 18m Articulated Boom Lift
18m Articulated Boom Lift

18m Articulated Boom Lift

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number CP
Product Details
Application:
Plant Installation, Maintenance, Venue Construction,maintenance, Construction Engineering, Large-scale Warehousing, Aviation,aerospace Industry Applications, Airports,harbors, Urban Utilities,gardening, Curtain Wall Engineering
Feature:
Easy Operation Safety Convenience, Platform 360° Rotation, Low Noise, Electrostatic Spraying Painting, Self-Propelled Hydraulic Mobile
Max. Working Height:
Up-and-over Height Up To 60'
Power Supply:
Diesel-powered,Battery Powered
Load Capacity:
200kg
Color:
Blue, Red, Yellow,Orange
Table Size:
0.9*0.7M
Lifting Height:
8m,10m,12m,14m,16m,19m,22m
Power:
Diesel,Battery,Hybrid Dual Power
Machinery Test Report:
Provided
Lift Mechanism:
Articulated Lift
Controls:
Analog/Digital
Dimensions:
Varies
Power Source:
Electric/Gas/Diesel
Highlight:

18m Articulated Boom Lift

,

Mobile Articulated Boom Lift

,

Telescopic Spider Man Lifts

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 8000~USD 30000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Product Description

18m Telescopic Spider Man Lift Hydraulic Mobile Boom Lift



The Man Lift Hydraulic Mobile Boom Lift is a versatile and reliable piece of equipment that provides safe and efficient access to high-altitude areas. It features a hydraulic system that allows it to reach heights of several meters, making it suitable for a wide range of applications. The mobile design enables easy transportation to different job sites, while the robust construction ensures stability and safety during use. Equipped with advanced safety features, such as fall protection systems and load sensors, the Man Lift Hydraulic Mobile Boom Lift is a powerful and efficient solution for any industry that requires safe and reliable access to high-altitude areas.

Specification:
Model Type CP-10A CP-12A CP-14A CP-16A CP-18A CP-20A
Lifting height 10M 12M 14M 16M 18M 20M
Working height 12M 14M 16M 18M 20M 22M
Load capacity 200KG
Platform size 0.9*0.7M
Working radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2500KG 2800KG 2800KG 3500KG
Overall Size( L*W*H) 5.2*1.7*2.1M 6.2*1.7*2.1M 5.6*1.7*2.1M 5.7*1.7*2.2M 6.5*1.8*2.3M 5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal) 3.0 M 3.6 M 3.6 M 3.9 M 3.9 M 3.9 M
Supporting Legs Stride Distance (Vertical) 4.7 M 4.7 M 4.7 M 4.9 M 4.9 M 4.9 M
Wind Resistance Level ≦5



18m Articulated Boom Lift 018m Articulated Boom Lift 1



Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.



Touch display fault code, easy maintenance.

When it comes to aerial work platforms, a spider boom lift is a unique and versatile option. These machines are designed to navigate tight spaces and complex environments, making them ideal for indoor or outdoor work.

One of the key benefits of a spider boom lift is its ability to provide a long reach and a wide range of motion. This makes it ideal for tasks such as tree trimming, painting, and more. Plus, because it's mounted on a trailer, it can be easily set up and used on a variety of surfaces.

If you need something even more versatile, a towable boom lift for sale might be the perfect solution. These machines are designed to provide a long reach and a wide range of motion, making them ideal for tasks such as painting, roofing, and other types of construction work. And if you need something that's easy to maneuver, a cherry picker could be just what you need.

No matter what type of aerial work platform you choose, it's important to choose a machine that's reliable, efficient, and safe. Look for features such as stable rubber tracks, easy-to-use controls, and safety harnesses to ensure.





Industry-Compliant and Certified:
Our Cherry picker meets stringent industry standards and certifications, ensuring compliance with safety regulations. It undergoes rigorous testing and inspection to guarantee its performance and reliability. Rest assured that our Cherry picker provides a safe and compliant solution for your elevated work needs.

Proven Track Record and Customer Satisfaction:
With a proven track record and satisfied customers, our Cherry picker has earned a reputation for excellence. We have a strong commitment to quality and customer satisfaction, reflected in our reliable products and exceptional service. Join the ranks of our happy customers who have experienced the benefits of our Cherry picker in their operations.
