Small Towable Electric Lightweight Articulating Boom Lift Easy Operation
  • Small Towable Electric Lightweight Articulating Boom Lift Easy Operation
  • Small Towable Electric Lightweight Articulating Boom Lift Easy Operation
Small Towable Electric Lightweight Articulating Boom Lift Easy Operation

Small Towable Electric Lightweight Articulating Boom Lift Easy Operation

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number CP
Product Details
Application:
Plant Installation, Maintenance, Venue Construction,maintenance, Construction Engineering, Large-scale Warehousing, Aviation,aerospace Industry Applications, Airports,harbors, Urban Utilities,gardening, Curtain Wall Engineering
Feature:
Easy Operation Safety Convenience, Platform 360° Rotation, Low Noise, Electrostatic Spraying Painting, Self-Propelled Hydraulic Mobile
Max. Working Height:
Up-and-over Height Up To 60'
Power Supply:
Diesel-powered,Battery Powered
Load Capacity:
200kg
Color:
Blue, Red, Yellow,Orange
Table Size:
0.9*0.7M
Lifting Height:
8m,10m,12m,14m,16m,19m,22m
Power:
Diesel,Battery,Hybrid Dual Power
Machinery Test Report:
Provided
Rotation Angle:
360 Degree
Controls:
Analog Or Digital
Drive Speed:
Up To 4 Mph
Height:
Up To 131 Ft
Outrigger Type:
Telescopic Or Non-Telescopic
Highlight:

Towable Lightweight Articulating Boom Lift

,

Electric Lightweight Articulating Boom Lift

,

Small Articulating Boom Lift

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 8000~USD 30000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Product Description

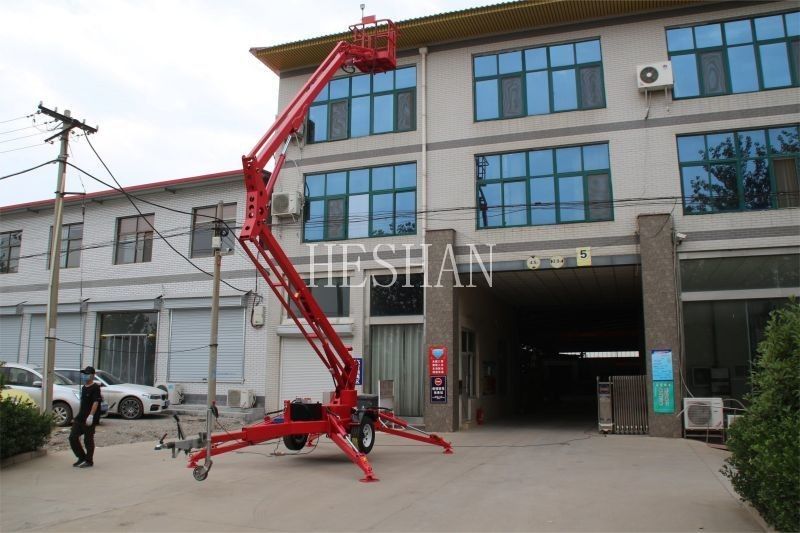

CE Articulating Small Towable Electric Lightweight Boom Lift For Sale



Hey there! Are you tired of heavy and bulky boom lifts that are a pain to transport and use? Then check out our Lightweight Boom Lift for Sale! This baby is compact, easy to maneuver, and weighs less than your average boom lift. But don't let its light weight fool you - it can still reach heights of up to several meters, making it perfect for a wide range of applications. And with a range of safety features to keep you secure, you can trust our Lightweight Boom Lift to get the job done safely and efficiently. So what are you waiting for? Order yours today!

Specification:
Model Type CP-10A CP-12A CP-14A CP-16A CP-18A CP-20A
Lifting height 10M 12M 14M 16M 18M 20M
Working height 12M 14M 16M 18M 20M 22M
Load capacity 200KG
Platform size 0.9*0.7M
Working radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2500KG 2800KG 2800KG 3500KG
Overall Size( L*W*H) 5.2*1.7*2.1M 6.2*1.7*2.1M 5.6*1.7*2.1M 5.7*1.7*2.2M 6.5*1.8*2.3M 5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal) 3.0 M 3.6 M 3.6 M 3.9 M 3.9 M 3.9 M
Supporting Legs Stride Distance (Vertical) 4.7 M 4.7 M 4.7 M 4.9 M 4.9 M 4.9 M
Wind Resistance Level ≦5



Small Towable Electric Lightweight Articulating Boom Lift Easy Operation 0Small Towable Electric Lightweight Articulating Boom Lift Easy Operation 1



Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.



Touch display fault code, easy maintenance.

A towable boom lift is a versatile and efficient option for any job that requires working at height. These machines are designed to provide a long reach and a wide range of motion, making them ideal for tasks such as painting, roofing, and other types of construction work.

One of the key benefits of a towable boom lift is its mobility. It can be easily transported from one job site to another, making it ideal for contractors and construction crews. Plus, with its stable platform and safety harnesses, it provides a safe and secure environment for workers to perform their tasks.

If you need something even more versatile, a tracked manlift might be just what you need. These machines are designed to navigate rough terrain with ease, making them ideal for outdoor work. And if you need something that's easy to set up and maneuver, a spider boom lift could be just what you need.

No matter what type of aerial work platform you choose, it's important to choose a machine that's reliable, efficient, and safe. Look for features such as easy-to-use controls and stable rubber tracks to ensure that your workers are protected and productive on the job.





Cutting-Edge Technology for Optimal Performance
Our Boom lifts incorporate the latest technological advancements to deliver optimal performance. From advanced hydraulic systems for smooth and precise movements to intelligent control systems for enhanced operator experience, our Boom lifts are designed to streamline your operations. With state-of-the-art technology, you can expect improved productivity, reduced downtime, and increased efficiency on the job site.
Environmentally Friendly and Energy Efficient
We care about the environment and strive to offer eco-friendly solutions. Our Boom lifts are designed with energy efficiency in mind, utilizing advanced power management systems and low-emission engines. By minimizing fuel consumption and emissions, we not only reduce our environmental footprint but also help you save on operating costs. Choose our Boom lifts for sustainable high-altitude work without compromising performance.
