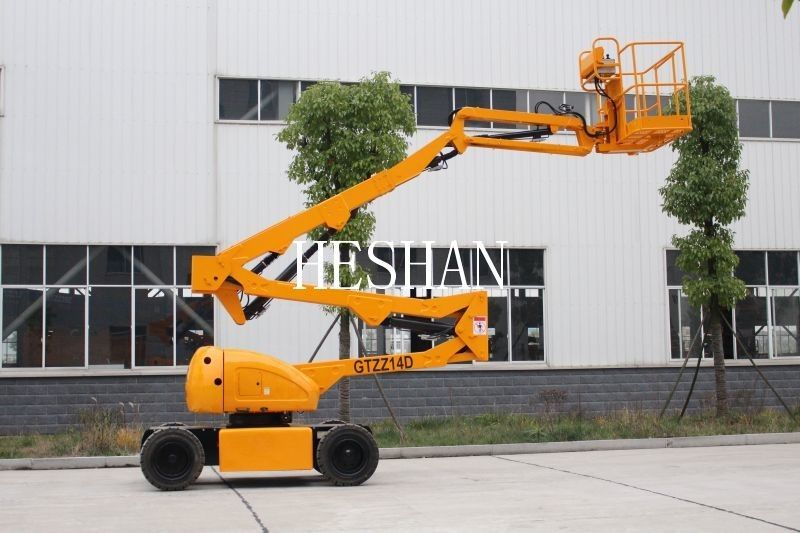

CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m
  • CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m
  • CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m
CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m

CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number GTZZ
Product Details
Application:
Plant Installation, Maintenance, Venue Construction,maintenance, Construction Engineering, Large-scale Warehousing, Aviation,aerospace Industry Applications, Airports,harbors, Urban Utilities,gardening, Curtain Wall Engineering
Feature:
Easy Operation Safety Convenience, Platform 360° Rotation, Low Noise, Electrostatic Spraying Painting, Self-Propelled Hydraulic Mobile
Max. Working Height:
Up-and-over Height Up To 60'
Power Supply:
Diesel-powered,Battery Powered
Load Capacity:
230kg
Color:
Blue, Red, Yellow,Orange
Table Size:
1.83*0.76M
Lifting Height:
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power:
Diesel,Battery
Lift Mechanism:
Articulated Lift
Capacity:
500-1000lbs
Controls:
Joystick, Pedal, Proportional
Drive Speed:
0-7mph
Gradeability:
45%
Highlight:

CE Construction Sky Lift

,

Articulated Construction Sky Lift

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 8000~USD 30000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Product Description

CE Certification 12m 16m 18m 20m Battery Power Electric Articulated Boom Sky Lift



Articulated Boom Lift has two power options, a diesel version and an electric version,One of the key features of an electric boom lift is its eco-friendly power source, as it operates on electricity instead of gasoline. This not only reduces emissions and noise pollution, but also makes it easier to use indoors or in enclosed spaces. Another advantage is that electric boom lifts are highly maneuverable and have a compact design, allowing them to navigate tight spaces and narrow aisles with ease.


Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5



CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m 0CE Certification Construction Sky Lift Electric Articulated 12m 16m 18m 20m 1



Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.





Touch display fault code, easy maintenance.

When it comes to finding the perfect cherry picker for your job, it's important to choose the right equipment with the right specifications. Our engine-powered boom lifts, also known as cherry pickers, offer superior hydraulic boom and platform technology for the ultimate outdoor performance. With both telescopic and articulating boom lifts available, you can choose the option that best suits your needs. Our telescopic boom lifts are great for jobs that require exceptional reach and capacity, while our articulating boom lifts are ideal for jobs that require reaching up and over obstacles. Choose our boom lifts for a reliable and efficient solution to your aerial work needs.







Application Scenario: High to Extreme Heights (40+ meters)
For tasks that require access to high to extreme heights, exceeding 40 meters, Articulated Boom lifts offer exceptional capabilities. These specialized lifts are designed to handle demanding projects such as the construction of tall structures, high-rise building maintenance, and industrial installations. With their robust construction, extended reach, and advanced safety features, they provide operators with a reliable and secure platform to operate at extreme heights with confidence.

Vertical Versatility
Articulated Boom lifts are known for their remarkable vertical versatility. The combination of telescopic booms and articulating joints allows operators to achieve both vertical and horizontal reach. This versatility proves invaluable in applications that require reaching over obstacles or working in tight spaces while maintaining stability and precise positioning. Operators can easily navigate complex environments and access various height levels efficiently.
