Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work
  • Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work
  • Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work
Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work

Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number CP
Product Details
Application:
Plant Installation, Maintenance, Venue Construction,maintenance, Construction Engineering, Large-scale Warehousing, Aviation,aerospace Industry Applications, Airports,harbors, Urban Utilities,gardening, Curtain Wall Engineering
Feature:
Easy Operation Safety Convenience, Platform 360° Rotation, Low Noise, Electrostatic Spraying Painting, Self-Propelled Hydraulic Mobile
Max. Working Height:
Up-and-over Height Up To 60'
Power Supply:
Diesel-powered,Battery Powered
Color:
Blue, Red, Yellow,Orange
Table Size:
0.9*0.7M
Power:
Diesel,Battery,Hybrid Dual Power
Machinery Test Report:
Provided
Warranty:
1 Year
Rotation Angle:
360 Degree
Lift Mechanism:
Articulated Lift
Drive Speed:
3 Mph
Gradeability:
25%
Horizontal Reach:
35 Ft
Highlight:

Towable Cherry Picker Spider Lift

,

Aerial Work Cherry Picker Spider Lift

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 8000~USD 30000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Product Description

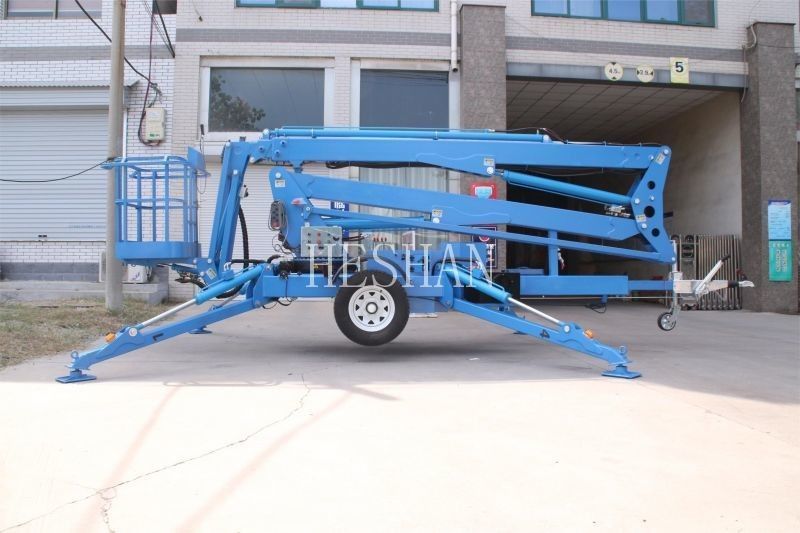

Cherry Picker Spider Lift Trailer Towable Articulated Trailer Boom Lift For Aerial Work



Articulated trailer boom lifts for aerial work are a type of high-altitude work platform that are designed to provide safe and efficient access to high and hard-to-reach areas. They are mounted on a trailer, making them easy to transport from one location to another. These lifts feature an articulated boom that can be extended and positioned precisely, allowing operators to work at various heights and angles. They can typically reach heights of up to 50 meters, and can support weight capacities of up to several hundred kilograms. Articulated trailer boom lifts are commonly used in construction, building maintenance, and industrial work, providing a safe and versatile option for accessing high-altitude areas.

Specification:
Model Type CP-10A CP-12A CP-14A CP-16A CP-18A CP-20A
Lifting height 10M 12M 14M 16M 18M 20M
Working height 12M 14M 16M 18M 20M 22M
Load capacity 200KG
Platform size 0.9*0.7M
Working radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2500KG 2800KG 2800KG 3500KG
Overall Size( L*W*H) 5.2*1.7*2.1M 6.2*1.7*2.1M 5.6*1.7*2.1M 5.7*1.7*2.2M 6.5*1.8*2.3M 5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal) 3.0 M 3.6 M 3.6 M 3.9 M 3.9 M 3.9 M
Supporting Legs Stride Distance (Vertical) 4.7 M 4.7 M 4.7 M 4.9 M 4.9 M 4.9 M
Wind Resistance Level ≦5



Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work 0Towable Cherry Picker Spider Lift Trailer Articulated For Aerial Work 1



Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.



Touch display fault code, easy maintenance.

For any job that requires working at height, a towable boom lift is a great investment. These machines are designed to provide a long reach and a wide range of motion, making them ideal for tasks such as painting, roofing, and more.

One of the key benefits of a towable boom lift is its versatility. It can be easily transported to different job sites and set up quickly, making it ideal for contractors and construction crews. Plus, with its stable rubber tracks, it can navigate uneven terrain with ease.

If you need something even more versatile, a spider lift might be just what you need. These machines are designed to navigate tight spaces and complex environments, making them ideal for indoor or outdoor work. And if you need something that's easy to maneuver, a cherry picker could be the perfect solution.

No matter what type of aerial work platform you choose, it's important to choose a machine that's reliable, efficient, and safe. Look for features such as easy-to-use controls and safety harnesses to ensure that your workers are protected at all times.





Global Reach and Support:
With our extensive network and global reach, we provide reliable support and service wherever your projects take you. Whether you require spare parts, technical assistance, or training, our dedicated team is available to cater to your needs. Count on our global support network to keep your Cherry picker operating at its best, regardless of your location.

Industry-leading Innovation:
Our Cherry picker represents the latest advancements in aerial work platforms. We are committed to continuous innovation and invest in research and development to stay at the forefront of the industry. By choosing our Cherry picker, you benefit from cutting-edge technology and features that enhance safety, performance, and efficiency.
