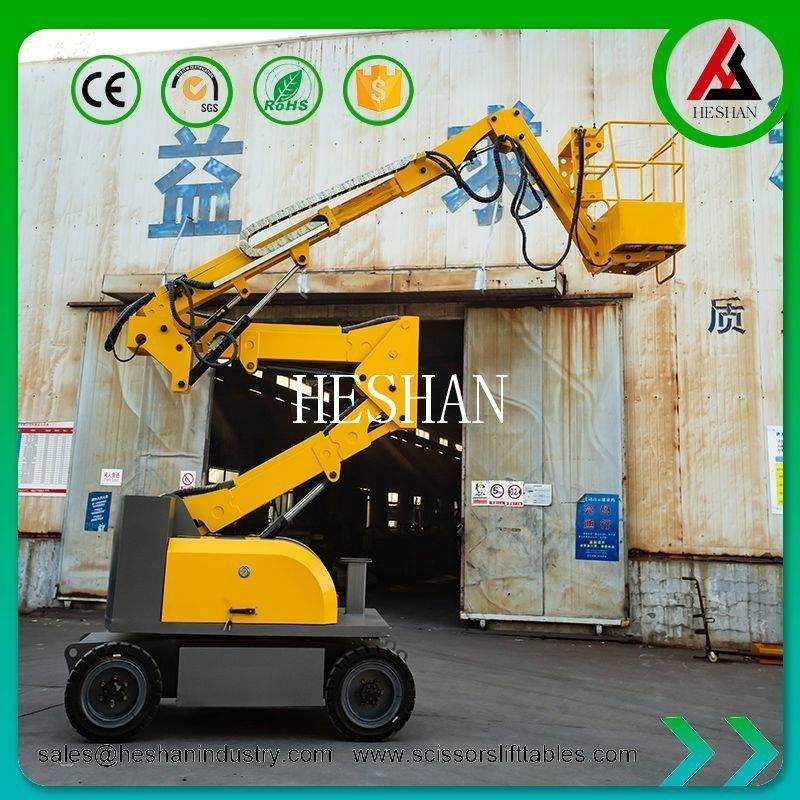

24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift
  • 24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift
  • 24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift
24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift

24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number GTZZ
Product Details
Application:
Plant Installation, Maintenance, Venue Construction,maintenance, Construction Engineering, Large-scale Warehousing, Aviation,aerospace Industry Applications, Airports,harbors, Urban Utilities,gardening, Curtain Wall Engineering
Feature:
Easy Operation Safety Convenience, Platform 360° Rotation, Low Noise, Electrostatic Spraying Painting, Self-Propelled Hydraulic Mobile
Max. Working Height:
Up-and-over Height Up To 60'
Power Supply:
Diesel-powered,Battery Powered
Load Capacity:
230kg
Color:
Blue, Red, Yellow,Orange
Table Size:
1.83*0.76M
Rotation Angle:
360 Degree
Lift Mechanism:
Articulated Lift
Weight:
2200kg
Drive Speed:
Varies
Gradeability:
Varies
Power Source:
Varies
Product Name:
Articulated Boom Lift
Highlight:

24m Articulated Boom Lift

,

26m Articulated Boom Lift

,

28m Small Electric Boom Lift

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 8000~USD 30000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Product Description

24m 26m 28m Self Propelled Electric Boom Lift Cheery Picker Articulating Lift



The cherry picker articulating lift has a range of working heights, typically between 10 and 50 meters, depending on the specific model. The lift can be used in a variety of working areas, including construction sites, building maintenance, industrial facilities, and entertainment venues. Before use, the cherry picker articulating lift must be inspected for any damage or defects, and operators must receive proper training and certification to ensure safe and efficient operation. Additionally, a risk assessment should be conducted to identify any potential hazards and to determine the appropriate safety measures. Overall, the cherry picker articulating lift is a versatile and valuable tool for any industry that requires access to high and hard-to-reach areas.

Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5



24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift 0



Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.





Touch display fault code, easy maintenance.

Need to get up and over objects? Choose our articulating boom lifts. With their multiple boom sections, you can gain access to even the most hard-to-reach areas. And with a maximum working height of up to 20.23m, you can tackle any job with ease.







Quick Setup and Easy Transport:
Time is of the essence on job sites, and our Articulated Boom lift understands that. It features a quick setup process, allowing operators to get to work swiftly. Additionally, its lightweight construction and trailer-mounted options make transportation hassle-free. Spend less time on logistics and more time on productive work with our Articulated Boom lift.

Operator-Friendly Features:
We prioritize operator comfort and convenience in the design of our Articulated Boom lift. With features like adjustable seating, intuitive controls, and ergonomic platforms, operators can work efficiently and comfortably for extended periods. The focus on operator-friendly features enhances productivity and reduces operator fatigue.
