Articulated Boom Lift
>
|
| Place of Origin | China |
| Brand Name | HESHAN |
| Certification | CE,ISO,SGS,ROHS |
| Model Number | GTZZ |

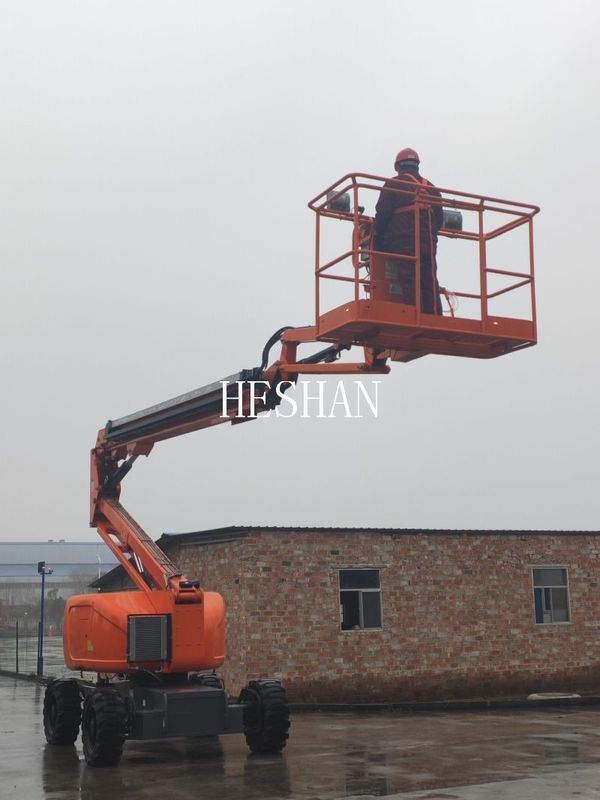

China Factor Boom Lift Cherry Picker Fruit Picker Articulated Construction Lift with CE ISO
The 16m construction articulated boom lift is a type of high-altitude work platform equipment that is designed to provide safe and efficient access to high and hard-to-reach areas. This equipment features a telescopic and/or articulated boom that can be extended and positioned precisely, enabling operators to work at various heights and angles. The lift is mounted on a mobile platform, allowing it to be easily moved from one location to another in construction sites. The 16m construction articulated boom lift is commonly used in construction and building maintenance for tasks such as window cleaning, painting, and installing HVAC systems, and it offers a safe and efficient alternative to traditional ladders and scaffolding.
| Model Type No. | GTZZ-12D | GTZZ-16D | GTZZ-20D | GTZZ-24D | GTZZ-25D | GTZZ-30D | GTZZ-38D | GTZZ-40D | GTZZ-45D | |
| Working Height Max | 14 m | 18 m | 22 m | 26.2 m | 27.1 m | 32 m | 40.1 m | 42.3 m | 47.8 m | |
| Platform Height Max | 12 m | 16 m | 20 m | 24.2 m | 25.1 m | 30 m | 38.1m | 40.3 m | 35.8 m | |
| Working Radius Max | 8 m | 9.8 m | 12.6 m | 15.8 m | 16 m | 20.2 m | 21.6 m | 21.6 m | 23 m | |
| Lifting capacity | 200kg | 230 kg | 230 kg | 230 kg | 230 kg | 480 kg | 480 kg | 480kg | 480 kg | |
| Crossing Height | 5m | 7.75 m | 9.2 m | 9.8 m | 9.2 m | 12.2m | 19.5m | 19.5m | 19.5m | |
| Length( stowed) Ⓓ | 5.3m | 7.7 m | 9.07 m | 9.92 m | 9.75 m | 12.52 m | 11.37 m | 12.15m | 11.6m | |
| Width (stowed) Ⓔ | 2m | 2.28 m | 2.38 m | 2.48 m | 2.58 m | 2.5 m | 2.5 m | 2.49m | 2.5 m | |
| Height(stowed) Ⓒ | 2.26m | 2.38 m | 2.49 m | 2.82 m | 2.8 m | 3.17 m | 3.17 m | 3.17m | 5.1 m | |
| Wheel base Ⓕ | 2.4m | 2.45m | 2.45m | 3 m | 3 m | 3.66 m | 3.96 m | 3.96m | 5.6 m | |
| Ground clearance Ⓖ | 200mm | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.38 m | |
| Platform Ⓑ*Ⓐ | 1.1*0.67m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 2.44×0.91m | 2.44×0.91m | 2.44*0.91m | 2.44×0.91m | |
| Tuning radius (inside) | 3.0m | 2.61 m | 2.66 m | 2.6 m | 2.6 m | 2.74 m | 3.13m | 3.13m | 2.69 m | |
| Tuning radius(outside) | 5.2m | 5.61 m | 5.66 m | 5.85m | 5.85 m | 5.85 m | 6.5m | 6.5m | 7.07 m | |
| Speed(stowed) | 3.2km/h | 4.2km/h | 4.2km/h | 4.2 km/h | 4.2 km/h | 4.14 m | 4.14 m | 4.14m | 4.4 km/h | |
| Travel speed(raised) | 0.8km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | |
| Turn table swing | 360° Continuous | |||||||||
| Platform Leveling | Automatic leveling | |||||||||
| Swing Speed | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | |
| Grade ability | 30% | 45% | 45% | 45% | 45% | 45% | 45% | 45% | 40% | |
| Solid tire | 33*12-20 | 33×12-20 | 33×12-20 | 36×14-20 | 385/65-24 | 385/65-22.5 | 385/65-22.5 | 445/65-22.5 | 445/65-22.5 | |
Features & Advantages
Touch display fault code, easy maintenance.
When it comes to finding the perfect cherry picker for your outdoor work, look no further than our engine-powered boom lifts. Our cherry pickers are designed with top-of-the-line hydraulic boom and platform technology for the ultimate performance. With a variety of boom lift specifications available, you can customize your equipment to meet the unique needs of your job. Whether you need an articulating boom lift for reaching up and over objects or a telescopic boom lift for exceptional reach and capacity, our boom lifts are the reliable and efficient solution to your aerial work needs.
