2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table
  • 2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table
  • 2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table
2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table

2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number SLT
Product Details
Application:
Hydraulic Electric Scissor Lift
Load Capacityy:
1000kg~4000kg
Platform Size:
1600*1000mm,As Customer Request
Voltage:
110v 220v 240v 380v Optional
Color:
Customized
Feature:
Easy Operation Safety Convenience
Warranty:
2 Years
After-sales Service Provided:
Free Spare Parts,Video Technical Support
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD 900-USD 4000/unit
Packaging Details
Plywood case package
Delivery Time
15-20 work days
Payment Terms
T/T, Western Union
Supply Ability
1000/units per month
Product Description

2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table

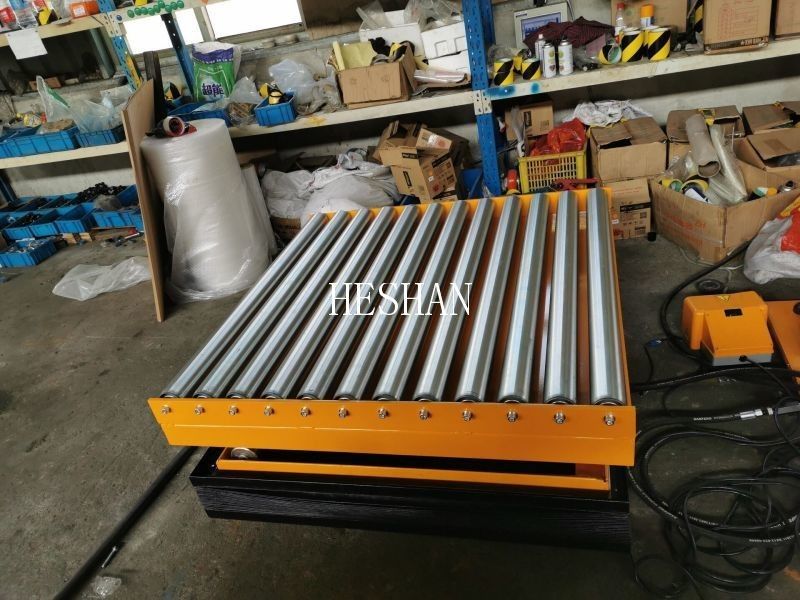

A roller scissor lift table is a piece of equipment used to lift and transport heavy loads in industrial and commercial settings. It consists of a platform that is raised and lowered by a scissor mechanism, which is powered by a hydraulic system. The platform is equipped with rollers that allow the load to be easily moved onto and off of the table. This type of lift table is commonly used in manufacturing, warehousing, and distribution facilities to improve efficiency and safety in material handling operations.

  • Load range: 1000kg~4000kg. Or customized according to customer requirements.
  • Platform Size: Standard parameters or special customization.
  • Maximum lifting height: Standard Or Customized.



Model Load Capacity(KG) Self Height(MM) Max Platform Height(MM) Platform Size(MM) Base Size(MM) Lifting time(s) Motor(KW) Net weight(KG)
SLT01 1000 205 1000 1300×820 1240×640 20~25 1.1 160
SLT02 1000 205 1000 1600×1000 1240×640 20~25 1.1 186
SLT03 1000 240 1300 1700×850 1580×640 30~35 1.1 200
SLT04 1000 240 1300 1700×1000 1580×640 30~35 1.1 210
SLT05 1000 240 1300 2000×850 1580×640 30~35 1.1 212
SLT06 1000 240 1300 2000×1000 1580×640 30~35 1.1 223
SLT07 1000 240 1300 1700×1500 1580×1320 30~35 1.1 365
SLT08 1000 240 1300 2000×1700 1580×1320 30~35 1.1 430
SLT2001 2000 230 1000 1300×850 1220×785 20~25 1.5 235
SLT2002 2000 230 1050 1600×1000 1280×785 20~25 1.5 268
SLT2003 2000 250 1300 1700×850 1600×785 25~35 2.2 289
SLT2004 2000 250 1300 1700×1000 1600×785 25~35 2.2 300
SLT2005 2000 250 1300 2000×850 1600×785 25~35 2.2 300
SLT2006 2000 250 1300 2000×1000 1600×785 25~35 2.2 315
SLT2007 2000 250 1400 1700×1500 1600×1435 25~35 2.2 415
SLT2008 2000 250 1400 2000×1800 1600×1435 25~35 2.2 500
SLT4001 4000 240 1050 1700×1200 1600×900 30~40 2.2 375
SLT4002 4000 240 1050 2000×1200 1600×900 30~40 2.2 405
SLT4003 4000 300 1400 2000×1000 1980×900 35~40 2.2 470
SLT4004 4000 300 1400 2000×1200 1980×900 35~40 2.2 490
SLT4005 4000 300 1400 2200×1000 2000×900 35~40 2.2 480
SLT4006 4000 300 1400 2200×1200 2000×900 35~40 2.2 505
SLT4007 4000 350 1300 1700×1500 1620×1400 35~40 2.2 570
SLT4008 4000 350 1300 2200×1800 1620×1400 35~40 2.2 655



2023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table 02023 Made In China Hydraulic Scissor Lift Roller Conveyor Lift Table 1

  1. Roller scissor lift tables are available in a variety of sizes and configurations to meet different lifting needs, ranging from small loads to several tons.
  2. Whether mobile or stationary, roller scissor lift tables are designed for flexibility, with some models equipped with wheels or casters for easy relocation.
  3. By working in tandem with other material handling equipment, such as forklifts or conveyors, roller scissor lift tables can significantly improve workflow efficiency and productivity.
  4. Safety is paramount, and many roller scissor lift tables come with safety features like safety bars or overload protection to prevent accidents and ensure worker safety.
  5. Some roller scissor lift tables are tailored to specific tasks, such as loading and unloading trucks or handling pallets, making them ideal for industries like logistics, manufacturing, and warehousing.
  6. Powered by electricity, compressed air, or hydraulic fluid, roller scissor lift tables are versatile, essential tools for lifting and moving heavy loads in various industries, including automotive, aviation, and construction.

A roller scissor lift table can be a game-changer for businesses that need to transport heavy objects regularly. They are perfect for use in warehouses, factories, and other industrial settings, and can save your workers time and energy when lifting and moving heavy items.



Conditions:

Quality warranty: 24 Months.Free Spare Parts Replacement.

Packing: will be packed by high quality boxes and put on pallet.
