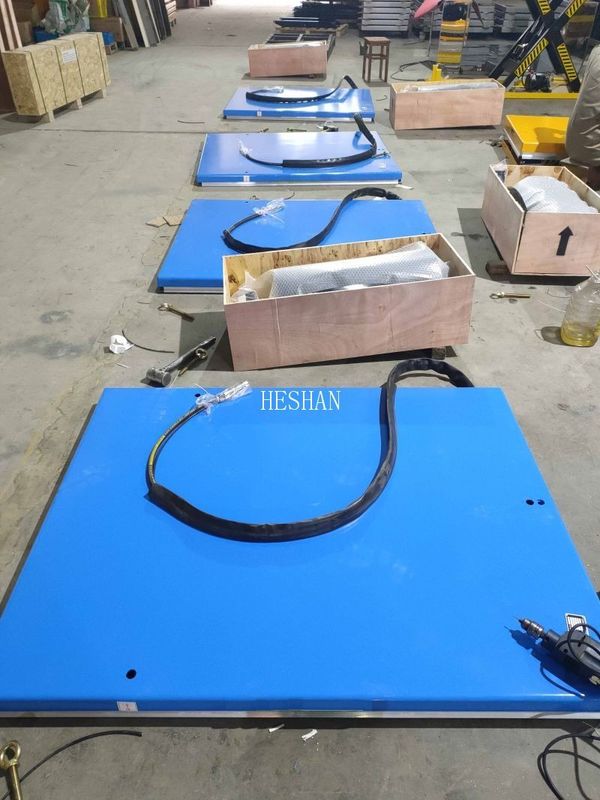

2000kg Load Capacity Electric Lift Platform Hydraulic Low Profile Scissor Lift Table
Low-Profile Lift Tables are a type of lift table that have a platform that sits closer to the ground than traditional lift tables. When fully lowered, most lift tables sit 8" to 10" above the floor, requiring a forklift or stacker for loading and unloading. In contrast, Low-Profile Lift Tables have platforms that sit almost flush to the floor, making them easier to load and unload with a hand pallet truck.
Pallet lift tables are ideal for facilities with limited space or where a forklift or stacker is not readily available. They are also more cost-effective than traditional lift tables because they do not require specialized equipment or certified operators to use them.
Floor height lift table are available in different weight capacities and platform sizes to meet the needs of different applications. They are commonly used in manufacturing, warehousing, and distribution facilities to lift and position heavy loads or to move materials around the workspace.
At our company, we offer a ergonomic pallet lift tables that are designed to improve efficiency and safety in the workplace. Our models are engineered to the highest standards and are equipped with advanced safety features to ensure smooth and safe operation. Contact us today to learn more about our Low-Profile Lift Tables and how they can benefit your business.
Low Profile Standard Hysraulic Electric Scissor Lift Tbale Parameters:
(Can be customized if special size or requirement)
- Load range: 1000kg~2000kg. Or customized according to customer requirements.
- Platform Size: standard parameters or special customization.
- Maximum lifting height: customized.
| Model |
Loading Capacity(kg) |
Platform Size
(mm) |
Base Size
(mm) |
Self Height (mm) |
Travel Height (mm) |
Lifting Time(s) |
Power
(V/Hz) |
Net Weight(kg) |
| LPL1001 |
1000 |
1450x1140 |
1325x1074 |
85 |
860 |
25 |
as per your local standard |
357 |
| LPL1002 |
1000 |
1600x1140 |
1325x1074 |
85 |
860 |
25 |
364 |
| LPL1003 |
1000 |
1450x800 |
1325x734 |
85 |
860 |
25 |
326 |
| LPL1004 |
1000 |
1600x800 |
1325x734 |
85 |
860 |
25 |
332 |
| LPL1005 |
1000 |
1600x1000 |
1325x734 |
85 |
860 |
25 |
352 |
| LPL1501 |
1500 |
1600x800 |
1325x734 |
105 |
870 |
30 |
302 |
| LPL1502 |
1500 |
1600x1000 |
1325x734 |
105 |
870 |
30 |
401 |
| LPL1503 |
1500 |
1600x1200 |
1325x734 |
105 |
870 |
30 |
415 |
| LPL2001 |
2000 |
1600x1200 |
1427x1114 |
105 |
870 |
35 |
419 |
| LPL2002 |
2000 |
1600x1000 |
1427x734 |
105 |
870 |
35 |
405 |
Conditions:
Quality warranty: 24 Months.Free Spare Parts Replacement.
Packing: will be packed by high quality boxes and put on pallet.
There are several common safety features that are incorporated into pallet lift tables to help prevent accidents and injuries. These safety features include:
1. Overload protection: Pallet lift tables are designed with overload protection to prevent overloading the table beyond its weight capacity. This feature ensures that the table will not collapse or malfunction due to excess weight.
2. Anti-drop safety features: Low profile lift tables typically have anti-drop safety features to prevent the table from dropping suddenly or unexpectedly. This may include a mechanical locking system or hydraulic pressure release valve that prevents the table from lowering unless the operator initiates the movement.
