Scissor Lift Table
>
|
| Place of Origin | China |
| Brand Name | HESHAN |
| Certification | CE,ISO,SGS,ROHS |
| Model Number | SLT |

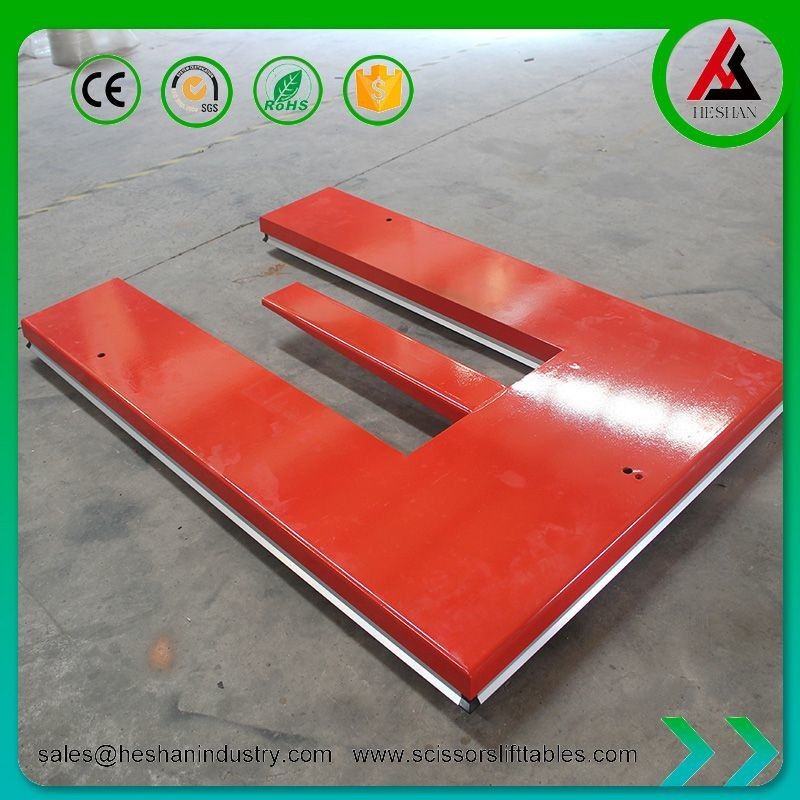

1000kg Pallet Use E Shape Scissor Lift Table Hydraulic Pallet Lifter
At our company, we are committed to providing high-quality Low-Profile Lift Tables that are engineered to the highest standards. Our ergonomic designs not only improve efficiency but also promote worker safety. We understand that every business has unique needs, and that's why we offer customized solutions to fit your specific requirements.
Investing in our Low-Profile Lift Tables is a cost-effective solution that will help you save time and money in the long run. Contact us today to learn more about our innovative lift table solutions and how they can benefit your business.
Standard Hysraulic Electric Scissor Lift Tbale Parameters:
(Can be customized if special size or requirement)
U Type Pallet lift table Parameter:
| Model | UPL600 | UPL1000 | UPL1500 | |
| Load Capacity | kg | 600 | 1000 | 1500 |
| Platform size LxW | mm | 1450x985 | 1450x1140 | 1600x1180 |
| Min.Platform Height | mm | 85 | 85 | 105 |
| Max.Platform Height | mm | 860 | 860 | 860 |
| Base size LxW | mm | 1335x947 | 1335x947 | 1335x947 |
| Lifting time | s | 25-35 | 25-35 | 30-40 |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Net weight | kg | 207 | 280 | 380 |
E Type Pallet Scissor Lift Parameter:
| Model | EPL 1000 | EPL 1000 | |
| Load Capacity | kg | 1000kg | |
| Platform size | mm | 1450*1440mm | 1850*1250mm |
| Lowered Height | mm | 85mm | 105mm |
| Electric Motor | mm | 1.1Kw | 2.2Kw |
| Max. Platform Height | mm | 860 | 1000 |
| Lifting time | mm | 25-35s | |
Conditions:
Quality warranty: 24 Months.Free Spare Parts Replacement.
Packing: will be packed by high quality boxes and put on pallet.
