12 Ton Mobile Loading Dock Equipment Warehouse Loading Dock Hydraulic Ramp
  • 12 Ton Mobile Loading Dock Equipment Warehouse Loading Dock Hydraulic Ramp
  • 12 Ton Mobile Loading Dock Equipment Warehouse Loading Dock Hydraulic Ramp
12 Ton Mobile Loading Dock Equipment Warehouse Loading Dock Hydraulic Ramp

12 Ton Mobile Loading Dock Equipment Warehouse Loading Dock Hydraulic Ramp

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number LDR
Product Details
Table Size:
L11000mm*W2000mm
Lift Drive / Actuation:
Hydraulic,Electric Motor
Rated Loading Capacity:
8ton,10ton,12ton
Voltage:
Local Voltage,110v 220v 240v 380v Optional,220/380V 50/60hz,Manual,220V/380V/415V
Keywords:
Fixed Dock Leveler,Hydraulic Dock Leveler/Dock Leveller,loading And Unloading Platform
Warranty:
2 Years
Weight:
800kg
Lift Mechanism:
Hydraulic Cylinder
After-sales Service Provided:
Free Spare Parts, Online Support
Application:
Bridges Loading Ramps, Yard Ramp For Loading, Portable Ramp, Goods Loading And Unloading,Mobile Loading Dock
Type:
Stationary/fixed Dock Leveller/dock Plate
Color:
Blue, Green, Customers' Requirements, Customized, Optional
Capacity:
10,000 - 25,000 Lbs.
Controls:
Push Button, Foot Pedal, Or Hand Lever
Deck Height:
Customizable
Finish:
Painted Or Galvanized
Highlight:

12 Ton Loading Dock Equipment

,

Mobile Loading Dock Equipment

,

Warehouse Loading Dock Hydraulic Ramp

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1000~USD 3000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
10000 set per year
Product Description

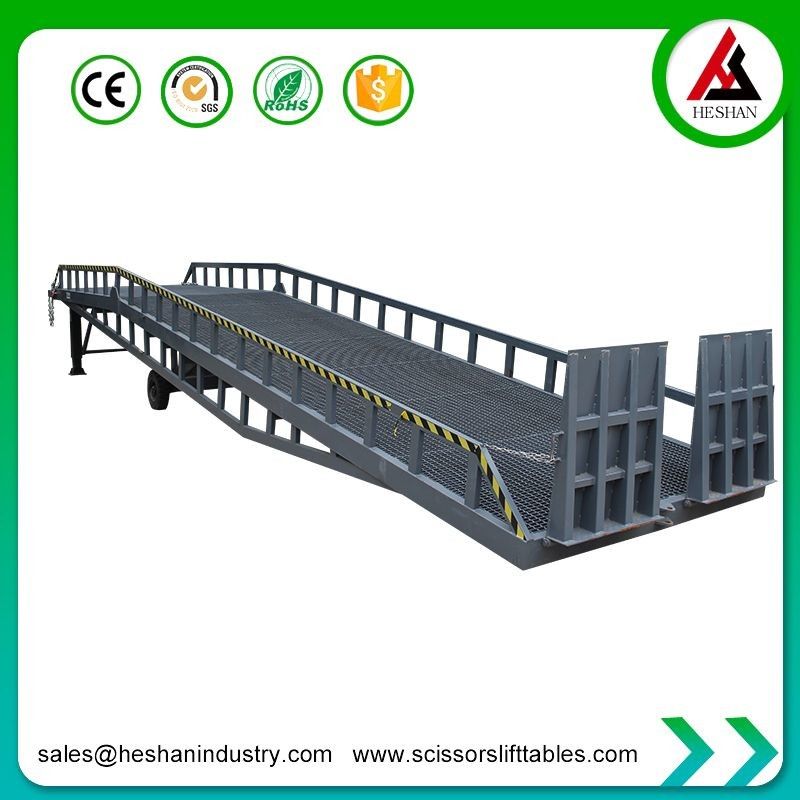

12ton Warehouse Container Used Loading Ramp Mobile Loading Dock Equipment



The 12-ton Warehouse Container Used Loading Ramp Mobile Loading Dock Equipment is a type of loading ramp commonly used in warehouses and logistics centers. This ramp is designed to provide a safe and efficient way to transfer goods between the warehouse and the container.

The mobile loading dock equipment can be easily moved around the warehouse, allowing for greater flexibility in loading and unloading operations. It is also designed to be durable and can support heavy loads, making it suitable for use with a range of containers and trucks.

One of the key features of the 12-ton Warehouse Container Used Loading Ramp Mobile Loading Dock Equipment is its ability to be adjusted to different heights, ensuring a smooth and level transition between the warehouse and the container. It is also equipped with safety features such as non-slip surfaces and safety rails, ensuring the safety of workers and goods being transported.


Specifications:



Model No. MBR-8 MBR-10 MBR-12
Load Capacity (t) 8 10 12
Platform Size (mm) 11000*2000 11000*2000 11000*2000
Overall Size(mm) 11200*2000*1400 11200*2000*1400 11200*2000*1400
Lip Width (mm) 400 400 400
Tail Board Length (mm) 800 800 800
Platform Length(mm) 2900 2900 2900
Slope Length(mm) 7500 7500 7500
Adjustable Range of Lifting Height(mm) 900~1700 900~1700 900~1700
Operating Manually Manually Manually



12 Ton Mobile Loading Dock Equipment Warehouse Loading Dock Hydraulic Ramp 0

Mobile loading dock equipment refers to a range of specialized tools and devices designed to enhance the efficiency and safety of loading and unloading operations in mobile or temporary docking situations. These equipment options are specifically designed to be portable and versatile, offering flexibility in various industrial settings.
