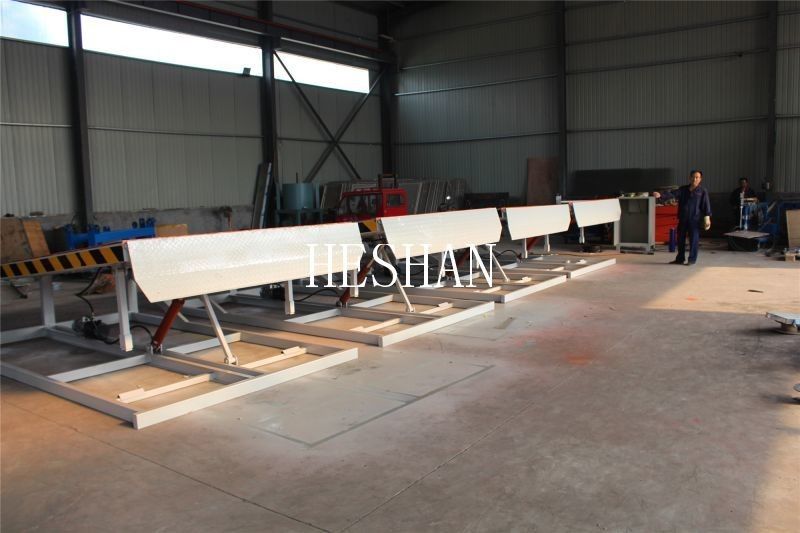

Automatic Mechanical Fixed Hydraulic Cylinder Pit Hinged Edge Of Dock Leveler
The Automatic Mechanical Fixed Hydraulic Cylinder Pit Hinged Edge of Dock Leveler is a widely used loading dock equipment that is designed to bridge the gap between the warehouse floor and the truck bed. It is suitable for various loading and unloading applications in warehouses and logistics centers.
The key features of this type of dock leveler include its automatic operation, hinged lip, and safety features such as safety rails and non-slip surfaces. It is operated using an electric motor or hydraulic system that raises and lowers the platform to the desired height, making it easy to transfer goods between the warehouse and the truck.
Specifications:
| Model No. |
SDB-6 |
SDB-8 |
SDB-10 |
SDB-12 |
| Load Capacity (t) |
6 |
8 |
10 |
12 |
| Platform Size (mm) |
L2000/2500*W2000 |
L2000/2500*W2000 |
L2000/2500*W2000 |
L2000/2500*W2000 |
| Lip Width (mm) |
400 |
400 |
400 |
400 |
| Travel Height (mm) |
Updip |
300 |
300 |
300 |
300 |
| Downdip |
200 |
200 |
200 |
200 |
| Motor Power (kw) |
0.75 |
0.75 |
0.75 |
0.75 |
| Pit Size (mm) |
2080/2580*2040*600 |
2080/2580*2040*600 |
2080/2580*2040*600 |
2080/2580*2040*600 |
| Electrical appliance |
Delixi |
Delixi |
Delixi |
Delixi |
| 1X40’container Qty. |
20sets |
20sets |
20sets |
20sets |
A pit hinged edge of dock leveler is a pit-mounted edge of dock leveler, is a versatile loading and unloading equipment commonly employed in warehouses and facilities where a full-size loading dock is unavailable. This equipment serves as a bridge between the dock floor and the truck bed, facilitating safe and efficient transfer of goods.
Pit Installation: The pit hinged edge of dock leveler is securely installed within a recessed pit at the edge of the loading dock, ensuring stability and proper alignment. This configuration allows the platform of the leveler to be at the same level as the truck bed, minimizing height differences and enabling seamless loading and unloading operations.
Hinged Lip Design: The leveler is equipped with a hinged lip at the end of the platform. This lip extends onto the truck bed, creating a smooth transition and eliminating the need for additional bridging components.
