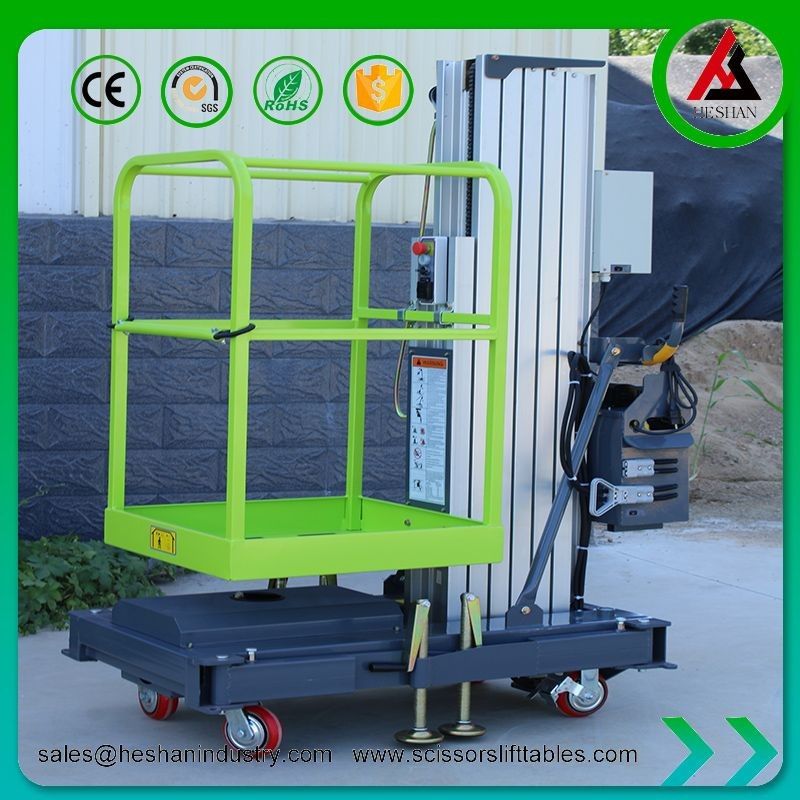

Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized
  • Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized
  • Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized
Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized

Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number ASL
Product Details
Application:
Aerial Work, Hotel, Building, Outdoor / Indoors Aerial Work, Airports
Keywords:
Vertical Manual Aluminum Lift, Single Mast Aluminum Lift Table Electric Hydraulic Vertical Man Lift, Vertical Aerial Work Platform/electric Platform Lift, Single Man Aluminum Aerial Lift, Three Mast Aluminum Work Platform
Max. Lifting Height:
6m, 12m, 8m
Color:
Blue, Red, Customers' Requirements, OEM, Black As Your Requirement
Warranty:
1 Year
After-sales Service Provided:
Free Spare Parts, Online Support
Lift Mechanism:
Mask Lift
Lift Drive:
Hydraulic,Electric Motor
Voltage:
According To Local Voltage
Drive Speed (Raised):
1.6km/h
Drive Speed (Stowed):
3.2km/h
Gradeability (Raised):
15%
Type:
Vertical Mast Lift
Highlight:

Mobile Vertical Mast Lift

,

Customized Vertical Mast Lift

,

Hydraulic Single Man Vertical Lift

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1000~USD 3000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
10000 set per year
Product Description

Small Mobile Aluminium Platform Hydraulic Single Man Lift



The Mobile Single Man Vertical Mast Lift is a versatile and reliable aerial work platform designed for use in a variety of applications. Its lightweight and compact design make it easy to carry and transport, while its user-friendly controls make it easy to operate. The lift is also highly durable, thanks to its rugged construction and high-quality materials, ensuring that it can withstand the wear and tear of daily use.

In terms of safety, the lift is equipped with a range of features, including an emergency stop button, safety rails, and a non-slip platform, ensuring that operators are protected at all times. Additionally, the lift is highly reliable, thanks to its robust hydraulic system, which provides smooth and precise movement.

Specification:

Model No. ASL5-1S ASL6-1S ASL8-1S ASL9-1S ASL10-1S
Max.Platform Height 5m 6m 8m 9m 10m
Max Working Height 7m 8m 10m 11m 12m
Load Capacity 150kg 150kg 150kg 150kg 130kg
Platform Size 0.6*0.55m
Occupants One person
Outrigger coverage 1.7*1.67m 1.7*1.67m 1.7*1.67m 1.93*1.77m 1.93*1.77m
Overall size 1.36*0.85*1.99m 1.36*0.85*1.99m 1.36*0.85*1.99m 1.45*0.85*1.99m 1.45*0.85*1.99m
Net Weight 315kg 325kg 378kg 400kg 430kg
Motor power 0.75kw 1.1kw
Motor 1.5KW
Charger 12V/15A



Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized 0Mobile Single Man Vertical Mast Lift Aluminium Hydraulic Platform Customized 1





Factory Show:



The Man Lift Equipment is the ultimate solution for elevated work tasks, offering unparalleled safety, reliability, and efficiency. Whether you're working in a warehouse, construction site, or any other elevated work area, this versatile tool provides easy and safe access to even the highest points. With its advanced hydraulic system, intuitive controls, and rugged construction, it is the perfect tool for any job site.
