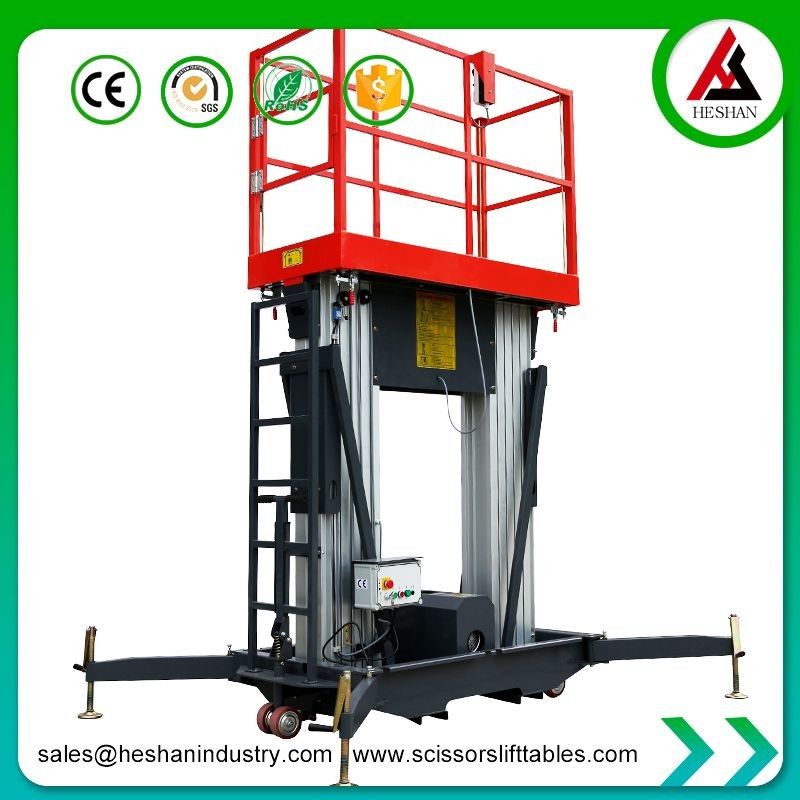

12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder
  • 12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder
  • 12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder
12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder

12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder

Place of Origin CHINA
Brand Name HESHAN
Certification CE,ISO
Model Number ADL
Product Details
After-sales Service Provided:
Overseas Third-party Support Available
Rated Loading Capacity:
100kg-200kg
Color:
Blue,Customers' Requirements
Max. Lifting Height:
12m
Voltage:
110v 220v 240v 380v Optional
Warranty:
12 Months
Table Size:
1.18*0.6
Application:
Aerial Work,hotel,Building,outdoor / Indoors Aerial Work,Airports
Keywords:
Vertical Manual Aluminum Lift,Single Mast Aluminum Lift Table Electric Hydraulic Vertical Man Lift,Vertical Aerial Work Platform/electric Platform Lift,Single Man Aluminum Aerial Lift,three Mast Aluminum Work Platform
Lift Mechanism:
Mask Lift
Highlight:

12m Electric Mast Lift

,

Hydraulic Electric Mast Lift

,

Vertical Man Lift Ladder

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
1000~1800 USD per set
Packaging Details
Standard export packing
Delivery Time
5-8 work days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
10000 units per month
Product Description

12m Electric Aerial Platform Hydraulic Vertical Mast Man Ladder Lift



Man Ladder Lifts that are suitable for a variety of applications, including construction sites, warehouses, factories, supermarkets, and more. Here are some key features of our Man Ladder Lift:

Multiple operation modes: Our Man Ladder Lift can be operated manually or electronically to meet different work requirements.

High stability: The equipment is made of high-strength materials and is designed to withstand heavy loads and perform reliably over time.

Easy operation: The Man Ladder Lift has a user-friendly operating system that is easy to use and requires no specialized training.

Safe and reliable: Our equipment is equipped with a variety of safety features, such as limit switches and overload protection, to ensure safe and reliable operation.

Multiple specifications: Our Man Ladder Lift comes in a range of specifications to meet different working environments and height requirements.



Model No. ADL-6 ADL-8 ADL-9 ADL-10 ADL-12
Max.Platform Height 6m 8m 9m 10m 12m
Max Working Height 8m 10m 11m 12m 14m
Load Capacity 200kg 200kg 200kg 200kg 200kg
Platform Size 1.3*0.62m 1.3*0.62m 1.3*0.62m 1.5*0.62m 1.5*0.62m
Occupants One person
Outrigger coverage 1.77*1.82m 1.77*1.82m 1.77*1.82m 2.1*2m 2.1*2m
Overall size 1.54*1*1.99m 1.54*1*1.99m 1.54*1*1.99m 1.76*1*1.99m 1.76*1*1.99m
Net Weight 630kg 680kg 730kg 800kg 830kg
Motor power 1.5kw 1.5kw 1.5kw 1.5kw 1.5kw
Options Battery 2*12V/100AH
Motor 2.2KW
Charger 12V/15A

12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder 0

12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder 1



12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder 2
