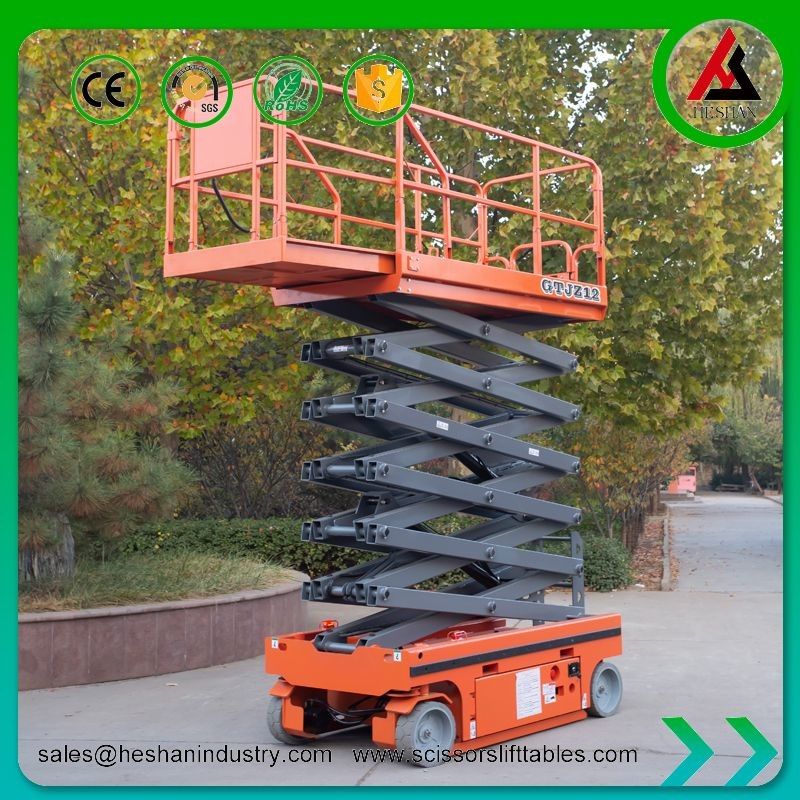

10m Electric Self Propelled Single Person Scissor Lift With Extendable Platform
A Single Person Scissor Lift, also known as a one-man lift or personal lift, is a compact and lightweight lifting solution designed for a single operator to access elevated work areas safely and efficiently. These lifts are typically small in size and can be easily maneuvered through narrow aisles and tight spaces, making them ideal for indoor use in commercial or industrial settings.
Single Person Scissor Lifts come in different heights, ranging from 4m to 12m, and are powered by either electric or hydraulic systems. They are commonly used in maintenance, repair, and installation tasks, such as changing light bulbs, painting, or HVAC maintenance.
Basic Parameter:
| Model No. |
GTJZ06 |
GTJZ08 |
GTJZ10 |
GTJZ12 |
GTJZ14 |
| Working Height(mm) |
8000 |
10000 |
12000 |
14000 |
15800 |
| Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
| Lifting capacity |
300 |
300 |
300 |
300 |
227 |
| Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
| Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
| Overall Length (mm) |
2400 |
2640 |
| Overall Width (mm) |
1150 |
1130 |
| Platform Size (mm) |
2270×1150 |
2840x1390 |
| Platform extend size (mm) |
900 |
| Min ground clearance (mm) |
110/20 |
| Wheelbase (mm) |
1850 |
| Min turn radius-inner wheel (mm) |
0 |
| Min turn radius-outer wheel (mm) |
2100 |
2700 |
| Power source (v/kw) |
24/3.0 |
24/4.5 |
| Running speed-folding (km/h) |
4 |
| Running speed-rising (km/h) |
0.8 |
| Rising/falling speed (sec) |
40/50 |
70/80 |
| Battery (V/AH) |
4×12/135 |
4x12/150 |
| Charger (V/A) |
24/25 |
24v/30 |
| Max climbing ability (%) |
20 |
| Max working allowable angle |
2-3° |
| Way of control |
Electro-hydraulic proportion control |
| Driver |
Double front-wheel |
| Hydraulic drive |
Double rear-wheel |
| Wheel size-stuffed&no mark |
Φ381×127 |
| Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
The Details Mobile scissor lift:
Configuration:
- Folding guardrails
- Multi-function control handle
- Anti-skidding platform
- Extendable platform
- Automatic lock gate
- High strength scissors
- Durable hydraulic cylinder
- Stable hydraulic pump station
- Hydraulic drive motor
- Non-marking PU driving wheels
- Pot hole automatic protection system
- Automatic brakes system
- Emergency stop button
- Emergent descent valve
- Automatic diagnostic indicator
- Tilt sensor alarm
- Siren
- Safety brackets
- Forklift hole
- Intelligent battery charger
- High capacity battery
Features & Advantages:
- Controlled by imported intelligent technology.
- Powered by DC, can be controlled manually or automatically with adjustable speed.
- Excellent climbing ability.
- Recharge restriction for platform rising.
- Automatic braking function for driving motor.
- Emergent drop locked.
- Automatic malfunction diagnosis for convenient maintenance.
Safety Precautions:
- Explosion-proof valves to protect hydraulic pipe and prevent pipe rupture.
- Spillover valve to prevent high pressure during upward movement and adjust pressure.
- Emergency decline valve for emergency descent or power off.
- Anti-dropping device to prevent platform falling.
We understand that every customer has unique requirements, and that's why our Electric Scissor Man Lift offers a range of customization options. From platform sizes and load capacities to additional features and accessories, we can tailor the lift to meet your specific needs. Our team works closely with you to understand your requirements and provide a customized solution that maximizes efficiency and productivity for your operations.
Integrating our Electric Scissor Man Lift into your workflow is seamless, thanks to its versatility and compatibility with various work environments. Whether you need to maneuver through narrow aisles or access elevated areas in confined spaces, our lift offers the flexibility to adapt to diverse working conditions. It becomes an integral part of your workflow, enhancing efficiency and enabling smooth and uninterrupted operations
