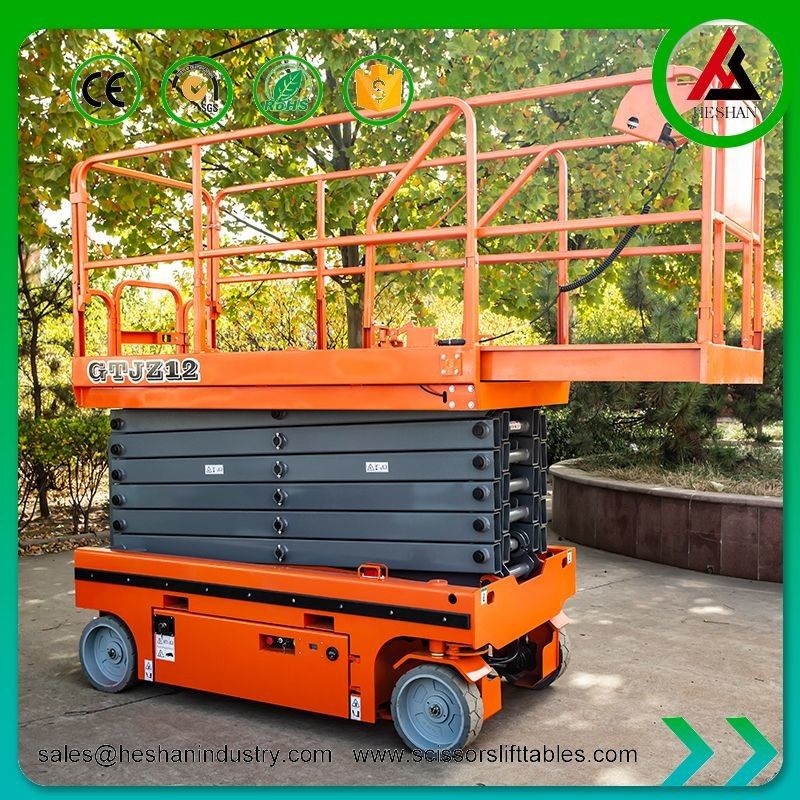

20feet Electric Chinese Self Propelled Mobile Hydraulic Scissor Lift
Self-propelled scissor lifts are designed to move around without the need for external power sources. These lifts are equipped with a motor and a set of wheels or tracks that allow them to move around on their own. The motor is typically powered by rechargeable batteries or a combustion engine, depending on the lift's size and intended use.
The operator controls the movement of the lift through a control panel, which allows them to move the lift forward, backward, or turn it in different directions. Some self-propelled scissor lifts are also equipped with features such as variable speed control or automatic leveling to improve their maneuverability and stability.
Basic Parameter:
| Model No. |
GTJZ06 |
GTJZ08 |
GTJZ10 |
GTJZ12 |
GTJZ14 |
| Working Height(mm) |
8000 |
10000 |
12000 |
14000 |
15800 |
| Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
| Lifting capacity |
300 |
300 |
300 |
300 |
227 |
| Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
| Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
| Overall Length (mm) |
2400 |
2640 |
| Overall Width (mm) |
1150 |
1130 |
| Platform Size (mm) |
2270×1150 |
2840x1390 |
| Platform extend size (mm) |
900 |
| Min ground clearance (mm) |
110/20 |
| Wheelbase (mm) |
1850 |
| Min turn radius-inner wheel (mm) |
0 |
| Min turn radius-outer wheel (mm) |
2100 |
2700 |
| Power source (v/kw) |
24/3.0 |
24/4.5 |
| Running speed-folding (km/h) |
4 |
| Running speed-rising (km/h) |
0.8 |
| Rising/falling speed (sec) |
40/50 |
70/80 |
| Battery (V/AH) |
4×12/135 |
4x12/150 |
| Charger (V/A) |
24/25 |
24v/30 |
| Max climbing ability (%) |
20 |
| Max working allowable angle |
2-3° |
| Way of control |
Electro-hydraulic proportion control |
| Driver |
Double front-wheel |
| Hydraulic drive |
Double rear-wheel |
| Wheel size-stuffed&no mark |
Φ381×127 |
| Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
The Details Mobile scissor lift:
Configuration:
- Folding guardrails
- Multi-function control handle
- Anti-skidding platform
- Extendable platform
- Automatic lock gate
- High strength scissors
- Durable hydraulic cylinder
- Stable hydraulic pump station
- Hydraulic drive motor
- Non-marking PU driving wheels
- Pot hole automatic protection system
- Automatic brakes system
- Emergency stop button
- Emergent descent valve
- Automatic diagnostic indicator
- Tilt sensor alarm
- Siren
- Safety brackets
- Forklift hole
- Intelligent battery charger
- High capacity battery
Features & Advantages:
- Controlled by imported intelligent technology.
- Powered by DC, can be controlled manually or automatically with adjustable speed.
- Excellent climbing ability.
- Recharge restriction for platform rising.
- Automatic braking function for driving motor.
- Emergent drop locked.
- Automatic malfunction diagnosis for convenient maintenance.
Safety Precautions:
- Explosion-proof valves to protect hydraulic pipe and prevent pipe rupture.
- Spillover valve to prevent high pressure during upward movement and adjust pressure.
- Emergency decline valve for emergency descent or power off.
- Anti-dropping device to prevent platform falling.
We incorporate sustainable design principles into our Electric Scissor Man Lift. The lift's components are manufactured using environmentally friendly materials, reducing the environmental impact. Additionally, its energy-efficient operation and recyclable components contribute to a greener and more sustainable working environment. Choose our lift to align your operations with sustainable practices and demonstrate your commitment to environmental responsibility.
In summary, our Electric Scissor Man Lift stands out with its global service network, enhanced efficiency and productivity, safety-first approach, reduced operational costs, user-focused design, versatility, and sustainable design. It is a reliable and efficient solution that prioritizes operator safety, comfort, and environmental sustainability. Choose our Electric Scissor Man Lift to elevate your operations and achieve exceptional results in your vertical access tasks.
