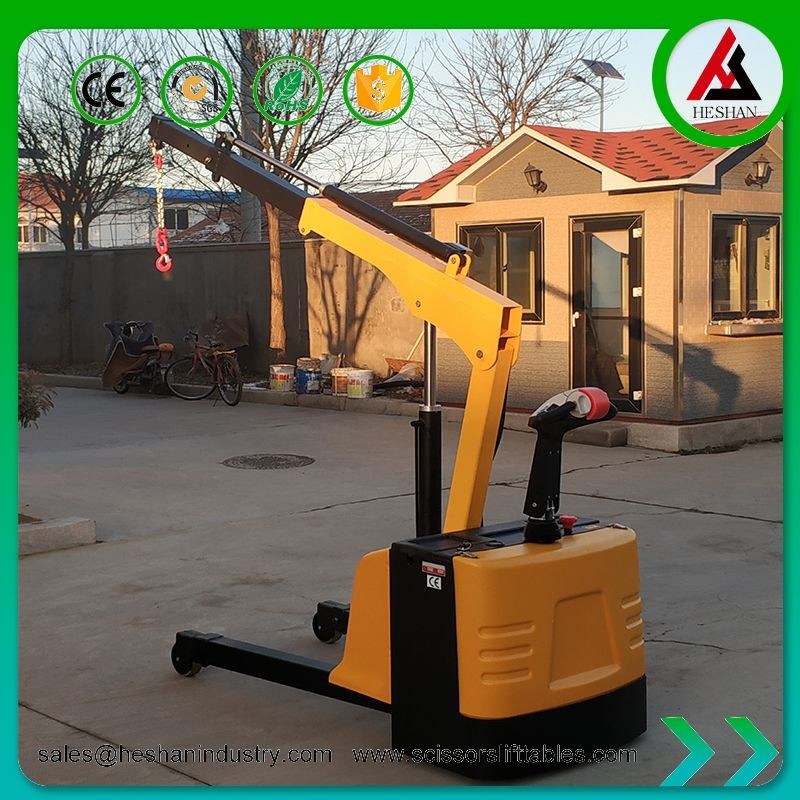

1 Ton Heavy Loads Electric Power Source Mobile Floor Cranes
This type of Electric Floor Crane is commonly used in manufacturing, construction, and warehouse environments, where heavy loads need to be lifted and moved over a wide area. The battery-powered operation makes it a flexible and efficient lifting solution that can be used in areas where electrical outlets may not be available.
The compact and mobile design of this Electric Floor Crane makes it easy to maneuver in tight spaces and narrow aisles. It is equipped with wheels or casters that allow it to be easily moved around the worksite, making it a versatile lifting solution for a variety of applications.
This type of crane is designed to be safe and reliable, with features such as overload protection and emergency stop buttons that ensure the safety of the operator and the load being lifted.
Specification:
| Model Type |
EFC-25 |
EFC-25-AA |
EFC-CB-15 |
ESC900R
Electric rotation 240° |
| Drawing |
On following Page 2 |
On following Page 3 |
On following Page 4 |
On following Page 5 |
| ( Extended 2 stages) |
1280+610+610mm |
1280+610+610mm |
1220+610+610mm |
1280mm+610mm+610mm |
| Load Capacity |
1200kg |
1200kg(1280mm) |
700kg(1220mm) |
900kg(1280mm) |
| Load Capacity (stage 1) |
600kg(1280~1890mm) |
600kg(1280~1890mm) |
400kg(1220~1830mm) |
450kg(1280~1890mm) |
| Load Capacity (stage 2) |
300kg(1890~2500mm) |
300kg(1890~2500mm) |
200kg(1890~2440mm) |
250KG(1890~2500mm) |
| Max Lifting Height |
3570mm |
3540mm |
3560mm |
3180mm |
| Min Lifting Height |
960mm |
935mm |
950mm |
1410mm |
| Retracted size(W*L*H) |
1920*760*1600mm |
1865*1490*1570mm |
2595*760*1580mm |
2000*1854*1550mm |
| Arm Electric Rotation |
/ |
/ |
/ |
120°left/right |
The battery-operated crane is a popular option for those who need a crane that can be easily moved from one location to another. This type of crane is ideal for use in locations where electrical power is not readily available. Its compact design and lightweight construction make it easy to move, while its counterbalance design provides stability and helps prevent tipping, making it a safer and more efficient alternative to manual handling.
In conclusion, Electric Floor Cranes provide the versatility, efficiency, and safety needed for handling heavy loads in industrial and manufacturing environments. With a counterbalance design, electric power source, and battery-operated options, these cranes offer the mobility and flexibility you need to get the job done effectively. Whether you need a permanent solution or a cost-effective rental option, Electric Floor Cranes are an ideal solution for your material handling needs.
