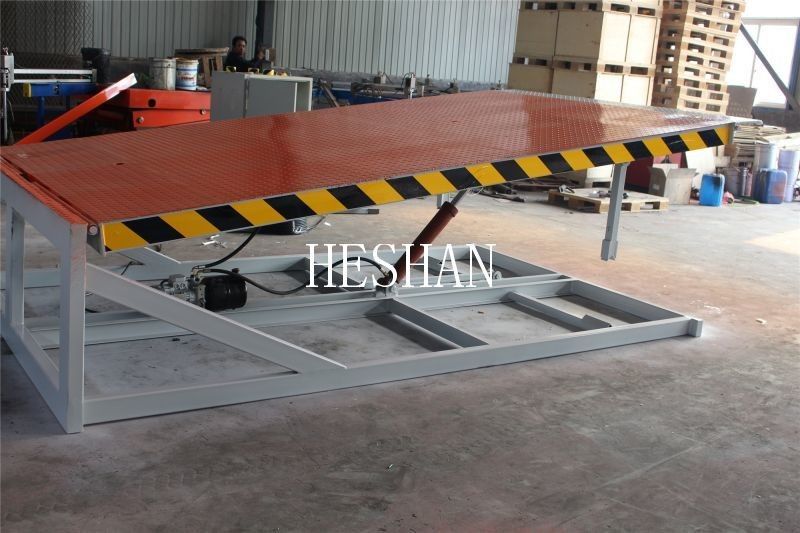

Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler
  • Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler
  • Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler
Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler

Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler

Place of Origin China
Brand Name HESHAN
Certification CE,ISO,SGS,ROHS
Model Number LDR
Product Details
Table Size:
L2000mm/2500mm*W2000mm
Lift Drive / Actuation:
Hydraulic,Electric Motor
Rated Loading Capacity:
6ton,8ton,10ton,12ton
Voltage:
Local Voltage,110v 220v 240v 380v Optional,220/380V 50/60hz,Manual,220V/380V/415V
Keywords:
Fixed Dock Leveler,Hydraulic Dock Leveler/Dock Leveller,loading And Unloading Platform
Warranty:
2 Years
Weight:
800kg
Lift Mechanism:
Hydraulic Cylinder
After-sales Service Provided:
Free Spare Parts, Online Support
Application:
Bridges Loading Ramps, Yard Ramp For Loading, Portable Ramp, Goods Loading And Unloading
Type:
Stationary/fixed Dock Leveller/dock Plate
Finish:
Powder Coated
Power Source:
Electric
Product Name:
Loading Dock Leveler
Highlight:

Warehouse Loading Dock Leveler

,

6 Ton Loading Dock Leveler

,

Logistics Bay Truck Dock Leveler

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1000~USD 3000
Packaging Details
Export packing cases
Delivery Time
15-25 work days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
10000 set per year
Product Description

Warehouse Logistics Bay Loading Unloading Truck Loading Leveler



A Warehouse Logistics Bay Loading Unloading Truck Loading Leveler is a type of equipment used in warehouses and logistics centers to facilitate the loading and unloading of trucks and other vehicles.

This device is typically installed at the entrance of a warehouse bay or loading dock and is designed to bridge the gap between the truck bed and the warehouse floor. It allows for easy and efficient transfer of goods between the truck and the warehouse, increasing productivity and reducing the risk of injury.

The Truck Loading Leveler is typically operated using an electric motor or hydraulic system, which lifts and lowers the platform to the desired height. The platform is usually equipped with a lip that extends out from the edge to ensure a smooth and safe transition between the truck and the warehouse floor.

The Truck Loading Leveler may also be equipped with safety features such as safety rails, non-slip surfaces, and automatic locking mechanisms, to ensure the safety of workers and the goods being transported.



Specifications:

Model No. SDB-6 SDB-8 SDB-10 SDB-12
Load Capacity (t) 6 8 10 12
Platform Size (mm) L2000/2500*W2000 L2000/2500*W2000 L2000/2500*W2000 L2000/2500*W2000
Lip Width (mm) 400 400 400 400
Travel Height (mm) Updip 300 300 300 300
Downdip 200 200 200 200
Motor Power (kw) 0.75 0.75 0.75 0.75
Pit Size (mm) 2080/2580*2040*600 2080/2580*2040*600 2080/2580*2040*600 2080/2580*2040*600
Electrical appliance Delixi Delixi Delixi Delixi
1X40’container Qty. 20sets 20sets 20sets 20sets

Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler 0Warehouse Logistics Bay Loading Dock Leveler 6 ton 8 ton Truck Dock Leveler 1
