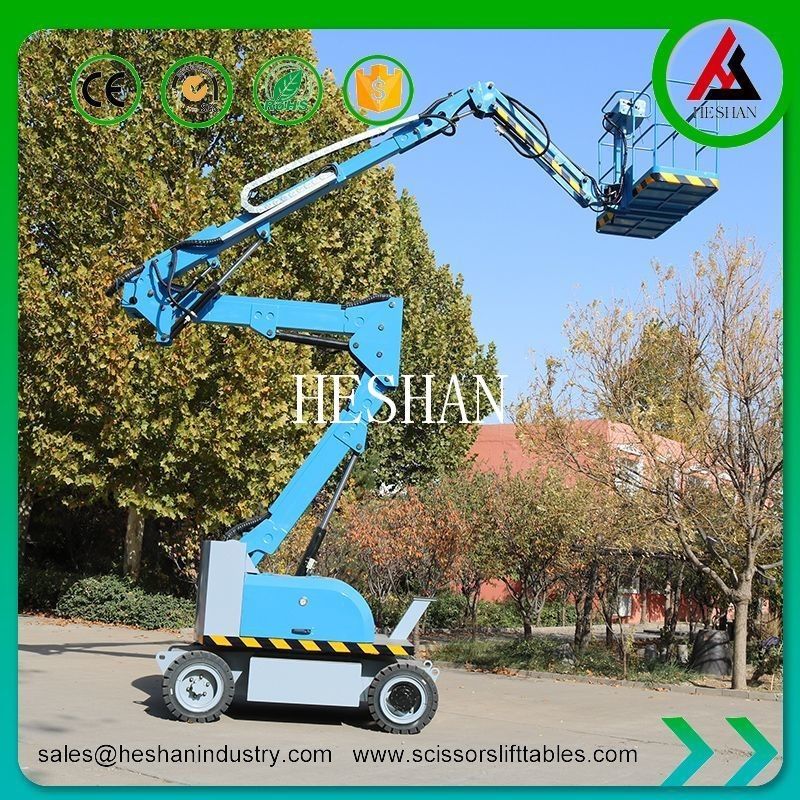

16 Meters Working Height Electric Articulating Boom Lifts Small Cherry Picker
Articulated Boom Lift is an aerial work platform, is a type of equipment that is widely used in various industries such as construction, maintenance, and warehouse operations. It allows workers to reach high heights safely and efficiently. The maximum working height of an electric boom lift can range from 40 to 135 feet, making it an ideal solution for tasks that require elevated access.
It has two power options, a diesel version and an electric version,One of the key features of an electric boom lift is its eco-friendly power source, as it operates on electricity instead of gasoline. This not only reduces emissions and noise pollution, but also makes it easier to use indoors or in enclosed spaces. Another advantage is that electric boom lifts are highly maneuverable and have a compact design, allowing them to navigate tight spaces and narrow aisles with ease.
In conclusion, an electric boom lift is a versatile and efficient tool that offers numerous benefits over traditional scaffolding or ladders. Whether you're working on a construction site, maintenance project, or simply need to reach high shelves in a warehouse, an electric boom lift can help you get the job done safely and effectively.
Specification:
| Model Type No. |
GTZZ-12D |
GTZZ-16D |
GTZZ-20D |
GTZZ-24D |
GTZZ-25D |
GTZZ-30D |
GTZZ-38D |
GTZZ-40D |
GTZZ-45D |
| Working Height Max |
14 m |
18 m |
22 m |
26.2 m |
27.1 m |
32 m |
40.1 m |
42.3 m |
47.8 m |
| Platform Height Max |
12 m |
16 m |
20 m |
24.2 m |
25.1 m |
30 m |
38.1m |
40.3 m |
35.8 m |
| Working Radius Max |
8 m |
9.8 m |
12.6 m |
15.8 m |
16 m |
20.2 m |
21.6 m |
21.6 m |
23 m |
| Lifting capacity |
200kg |
230 kg |
230 kg |
230 kg |
230 kg |
480 kg |
480 kg |
480kg |
480 kg |
| Crossing Height |
5m |
7.75 m |
9.2 m |
9.8 m |
9.2 m |
12.2m |
19.5m |
19.5m |
19.5m |
| Length( stowed) Ⓓ |
5.3m |
7.7 m |
9.07 m |
9.92 m |
9.75 m |
12.52 m |
11.37 m |
12.15m |
11.6m |
| Width (stowed) Ⓔ |
2m |
2.28 m |
2.38 m |
2.48 m |
2.58 m |
2.5 m |
2.5 m |
2.49m |
2.5 m |
| Height(stowed) Ⓒ |
2.26m |
2.38 m |
2.49 m |
2.82 m |
2.8 m |
3.17 m |
3.17 m |
3.17m |
5.1 m |
| Wheel base Ⓕ |
2.4m |
2.45m |
2.45m |
3 m |
3 m |
3.66 m |
3.96 m |
3.96m |
5.6 m |
| Ground clearance Ⓖ |
200mm |
0.43 m |
0.43 m |
0.43 m |
0.43 m |
0.43 m |
0.43 m |
0.43 m |
0.38 m |
| Platform Ⓑ*Ⓐ |
1.1*0.67m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
2.44×0.91m |
2.44×0.91m |
2.44*0.91m |
2.44×0.91m |
| Tuning radius (inside) |
3.0m |
2.61 m |
2.66 m |
2.6 m |
2.6 m |
2.74 m |
3.13m |
3.13m |
2.69 m |
| Tuning radius(outside) |
5.2m |
5.61 m |
5.66 m |
5.85m |
5.85 m |
5.85 m |
6.5m |
6.5m |
7.07 m |
| Speed(stowed) |
3.2km/h |
4.2km/h |
4.2km/h |
4.2 km/h |
4.2 km/h |
4.14 m |
4.14 m |
4.14m |
4.4 km/h |
| Travel speed(raised) |
0.8km/h |
1.1km/h |
1.1km/h |
1.1km/h |
1.1km/h |
1.1km/h |
1.1km/h |
1.1km/h |
1.1km/h |
| Turn table swing |
360° Continuous |
| Platform Leveling |
Automatic leveling |
| Swing Speed |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
0~0.8rpm |
| Grade ability |
30% |
45% |
45% |
45% |
45% |
45% |
45% |
45% |
40% |
| Solid tire |
33*12-20 |
33×12-20 |
33×12-20 |
36×14-20 |
385/65-24 |
385/65-22.5 |
385/65-22.5 |
445/65-22.5 |
445/65-22.5 |
Features & Advantages
- China's renowned YSD diesel pump station.
- Electrical box with waterproof and dustproof features, ideal for outdoor use.
- Control panel that is protected from rain.
- Self-leveling feature for optimal and safe operation.
- Water-resistant diesel engine, motor, and battery cover.
- Maintenance access point designed for easy use.
- Manually operated diesel engine accelerator, providing more flexible operation.
- Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
- Basket leveling switch, making adjustments easier.
- Torsion shaft with excellent shock absorption for improved road performance.
- Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
- Basket and arm lock system to prevent equipment body sway during transportation.
- Illuminated platform for working.
- Brake lights connected to the tractor.
- Anti-pinch basket.
- Safety harness for operator protection.
- Stable rotary motor capable of 360-degree rotation.
- Free quick wear parts for prompt replacement included in the offer.
- Touch display fault code, easy maintenance.
Touch display fault code, easy maintenance.
If you're in need of a reliable and high-performing boom lift cherry picker, look no further. Our machines are engineered with the power and reach necessary to access hard-to-reach work areas. With strong terrainability and convenient operation, our articulated boom lifts are perfect for both indoor and outdoor use.
All-Terrain Capability:
Our Articulated Boom lift is built to conquer various terrains and environments. Whether it's rough terrain, uneven surfaces, or outdoor conditions, our Articulated Boom lift offers superior all-terrain capability. Its rugged tires, sturdy chassis, and powerful drive system ensure reliable performance across different work environments. Unlock new possibilities with our versatile and all-terrain Articulated Boom lift.
Efficient and Cost-Effective Solution:
Maximize your productivity and minimize your costs with our Articulated Boom lift. Its efficient design and advanced features enable operators to complete tasks quickly and effectively, reducing labor time and expenses. By choosing our Articulated Boom lift, you can optimize your work processes and achieve cost savings while maintaining the highest standards of safety and performance.
